![Standard Thermocouple - Tube Tube Type Thermocouple With 4.8mm (3/16") Probe.](http://www.nickersonpms.com/cdn/shop/products/standard-thermocouple-tube-tube-type-thermocouple-with-4-8mm-3-16-probe-1_600x600.jpg?v=1694167890)

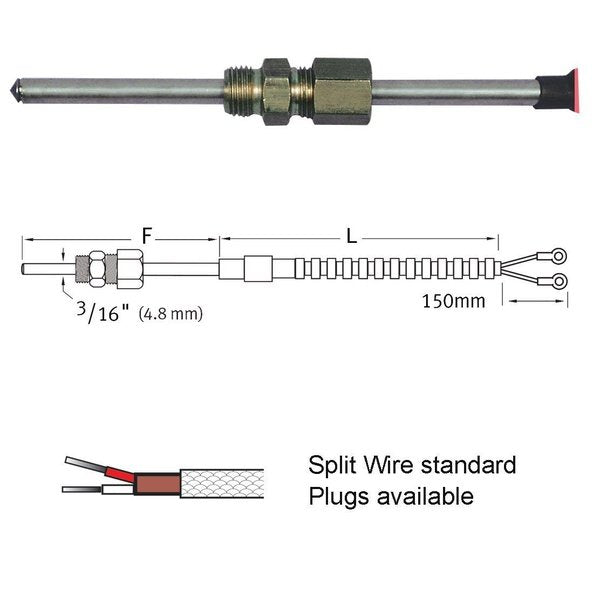

Tube Tube Type Thermocouple With 4.8mm (3/16") Probe.
Original price
£14.49
-
Original price
£21.41
Original price
£14.49
£14.49
-
£21.41
Current price
£14.49
Description
Standard tube type thermocouples commonly used on moulding machines and extruders.

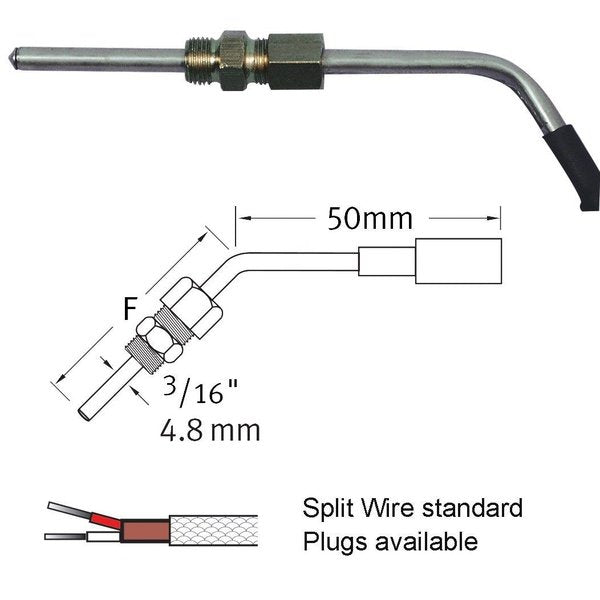

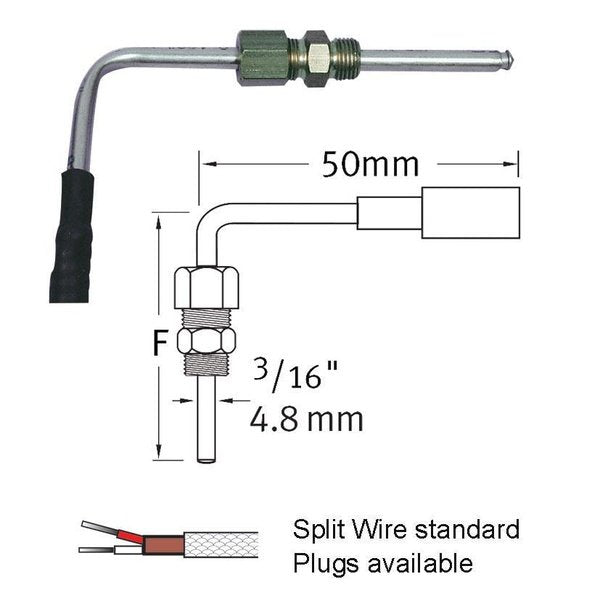

Select Tube diameter, length and configuration. (straight, 45 deg, 90 deg)
- Available in straight or angled configuration.
- Mineral Insulated version can be bent to any angle.
- Flexible armour covered leads and with split leads.
- When ordering, be sure to specify the A and B dimension you require.
Additional Details
probe angle | type | lead length |
---|---|---|
Straight | J Type | 1000mm |
Straight | J Type | 1500mm |
Straight | J Type | 2000mm |
Straight | K Type | 1000mm |
Straight | K Type | 1500mm |
Straight | K Type | 2000mm |
45 degree | J Type | 1000mm |
45 degree | J Type | 1500mm |
45 degree | J Type | 2000mm |
45 degree | K Type | 1000mm |
45 degree | K Type | 1500mm |
45 degree | K Type | 2000mm |
90 degree | J Type | 1000mm |
90 degree | J Type | 1500mm |
90 degree | J Type | 2000mm |
90 degree | K Type | 1000mm |
90 degree | K Type | 1500mm |
90 degree | K Type | 2000mm |
