Hot Tip Mould Sprue Cleaner

Hot Tip Mould Sprue Cleaner

£4.23 - £135.00
£135.00
£4.23 - £135.00
£135.00
Description

Hot Tip Mould Sprue Cleaner Set (Includes nos: 8, 10 & 14 tips)

  • Quick removal of frozen sprues from sprue bushing.
  • Cleaning of distribution canals in mould.
  • Melting and removal of frozen plastic residue from mould undercut areas and other trouble spots.
  • Fast cleaning of frozen hot runner moulds without dismantling.

A versatile, lightweight tool for removing frozen thermoplastic. An internal heating element is located at the front end of a 330 mm long flexible metal tube. Inter-changeable copper tips slide over the hot tube ends. The tips are of various designs for different applications and reach 345oC in 10 to 35 seconds after depressing the trigger.

Voltage 240 Volts, Hot Tube Output 80W, 150W max
Weight 250 gr, Length of Cable 3m
Maximum Tip Temp. 343C. Time to reach Max Temperature Tube 10 secs, hot tip 10 - 35s

Item Comments Part no Price £ Quantity
Gun Set (Inc 8, 10 &14 tips ) Cleaner Set (Inc 8, 10 &14 tips ) MSCRTZ 135.00

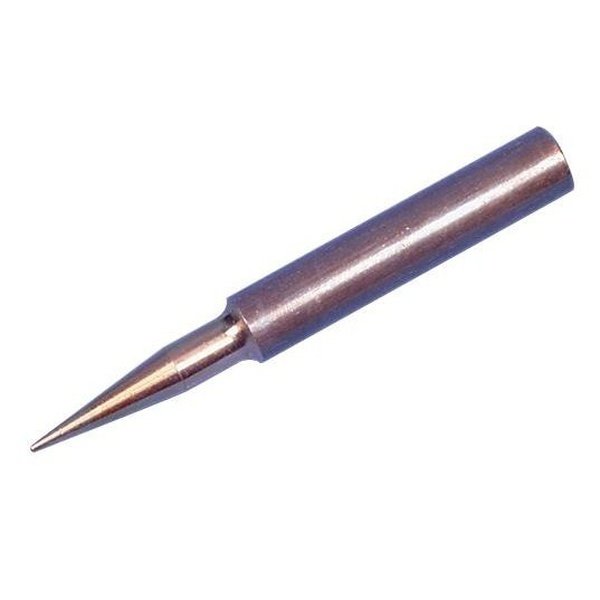

Straight, Pointed End 72mm tip MSCRT8 4.23

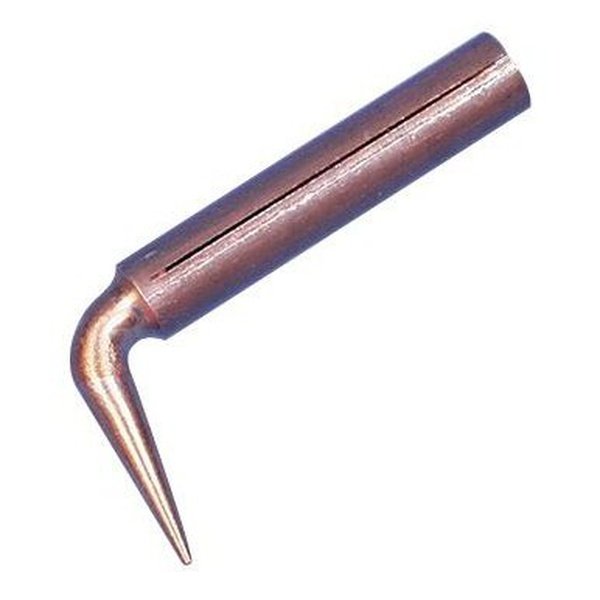

90 Degree Pointed End 72mm tip MSCRT10 8.60

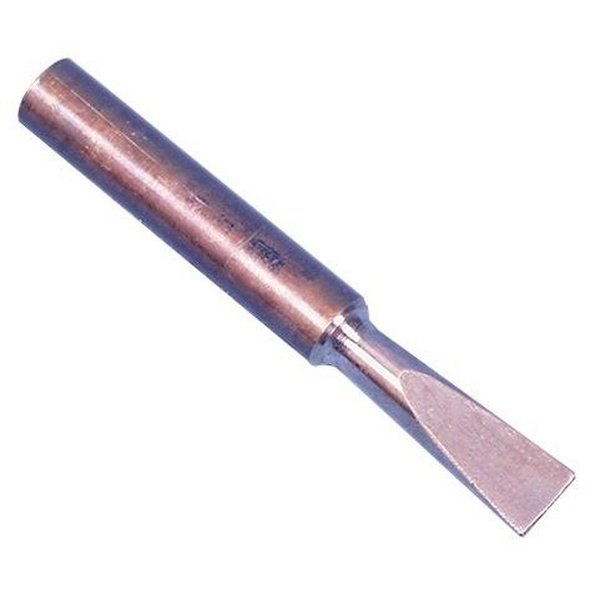

Flat Tip End 72mm tip MSCRT14 7.30
Spare Element & Arm Spare Element & Arm MSCRTE 69.00
Flat Straight Tip End 72mm tip MSCRT9 6.85

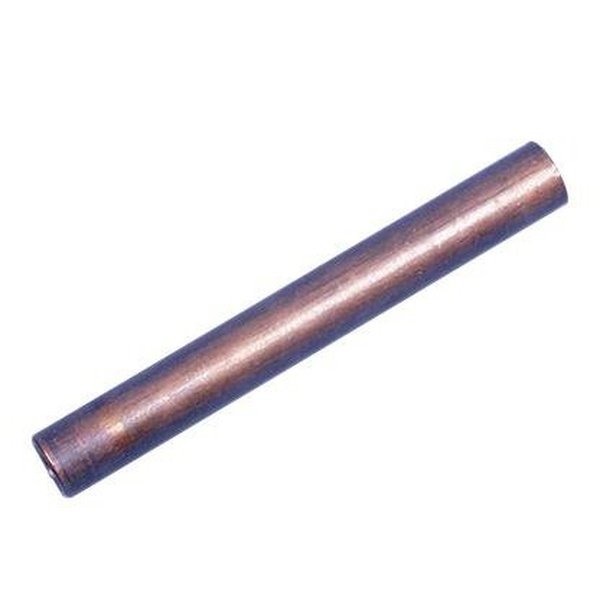

Parallel bar - No tip Parallel bar - No tip MSCRT11 4.84

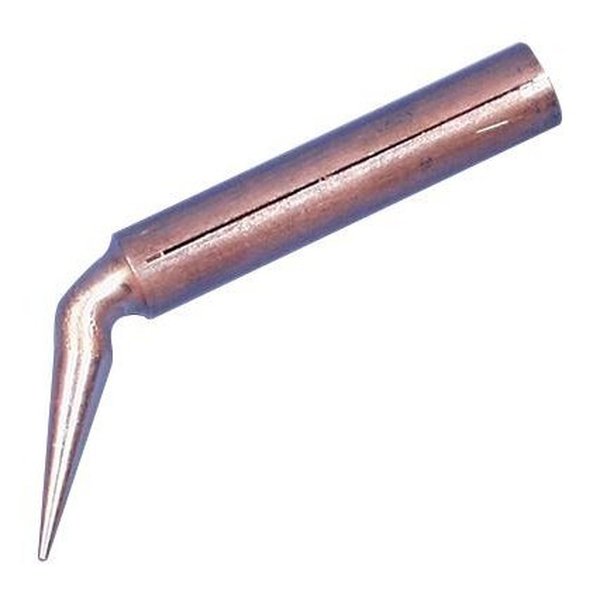

Pointed 45 Degree Tip 72mm tip MSCRT12 8.50

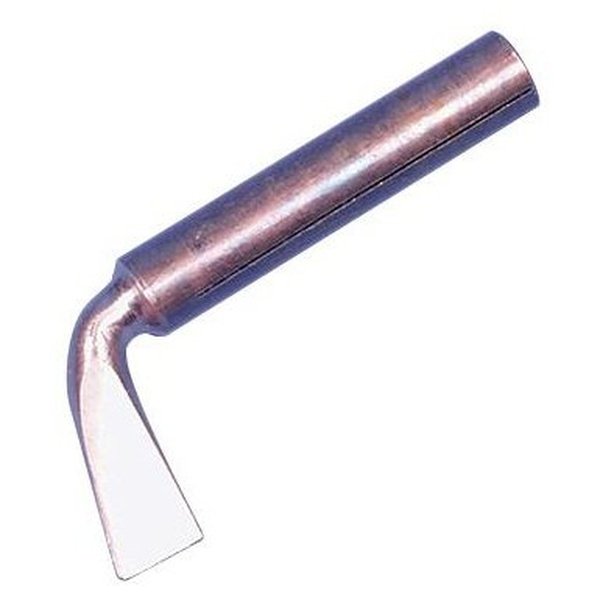

Flat 90 degree Tip End 72mm tip MSCRT13 11.20
Item
Gun Set (Inc 8, 10 &14 tips )
MSCRTZ
£135.00
Straight, Pointed End
MSCRT8
£4.23
90 Degree Pointed End
MSCRT10
£8.60
Flat Tip End
MSCRT14
£7.30
Spare Element & Arm
MSCRTE
£69.00
Flat Straight Tip End
MSCRT9
£6.85
Parallel bar - No tip
MSCRT11
£4.84
Pointed 45 Degree Tip
MSCRT12
£8.50
Flat 90 degree Tip End
MSCRT13
£11.20
Gun Set (Inc 8, 10 &14 tips ) MSCRTZ 135.00
Straight, Pointed End MSCRT8 4.23
90 Degree Pointed End MSCRT10 8.60
Flat Tip End MSCRT14 7.30
Spare Element & Arm MSCRTE 69.00
Flat Straight Tip End MSCRT9 6.85
Parallel bar - No tip MSCRT11 4.84
Pointed 45 Degree Tip MSCRT12 8.50
Flat 90 degree Tip End MSCRT13 11.20
