Airtect Nozzle and Barrel Protection and Hot Runner Mould Protection
Description
NOZZLE + BARREL PROTECTION + HOT RUNNER MOULD PROTECTION

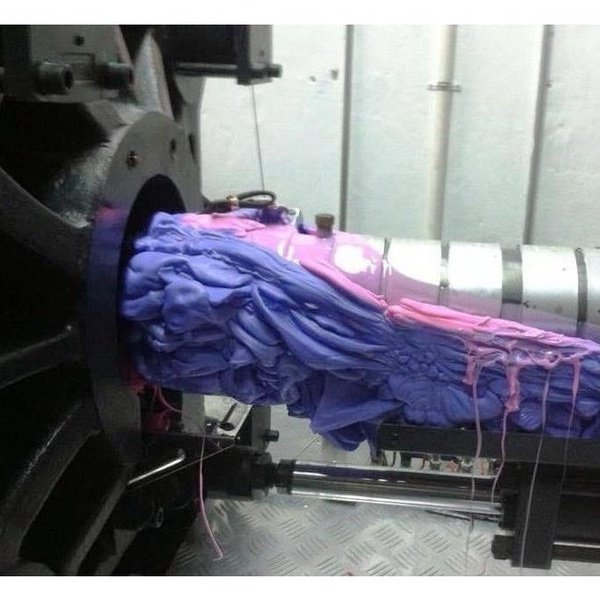

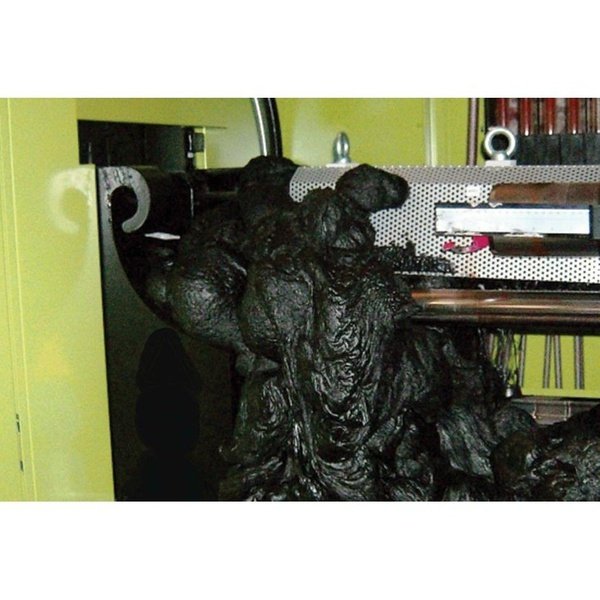

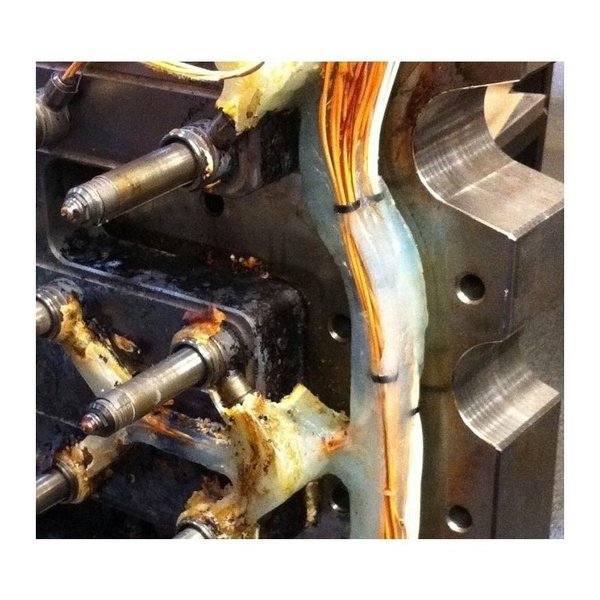

The AIRTECT Plastic Leak Alarm System is a unique device which gives protection against plastic leak damage caused by leaking plastic either within a Hot Runner Mould and/or at the IMM Injection Nozzle.
AIRTECT Systems are being used worldwide by many well-known companies, especially in Automotive, Packaging and Medical Device manufacturing.
Airtect Plastic Leak Alarm Systems will give you increased up time and significantly reduce the repair costs associated with the damage caused by undetected leaks.
See www.airtect.com
Options

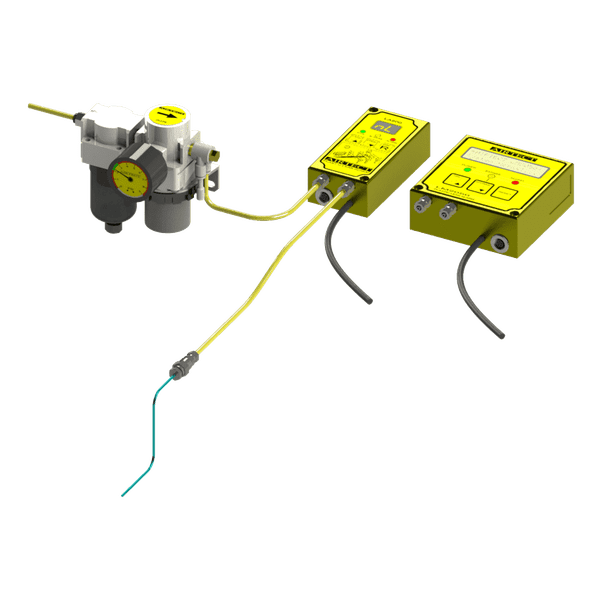

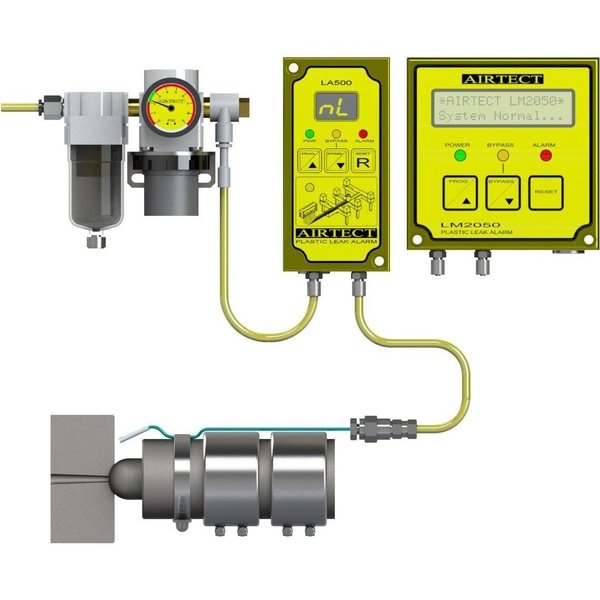

NOZZLE and BARREL PROTECTION

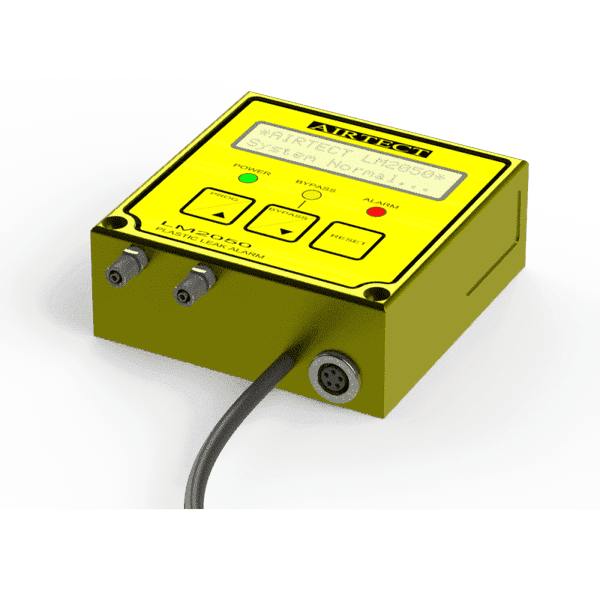

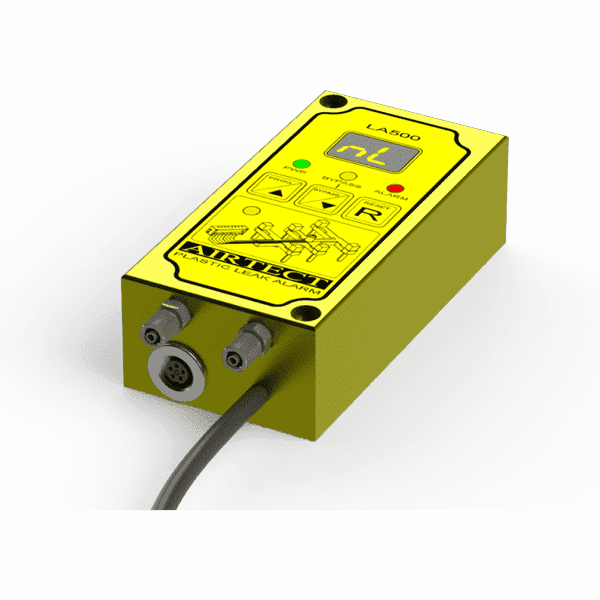

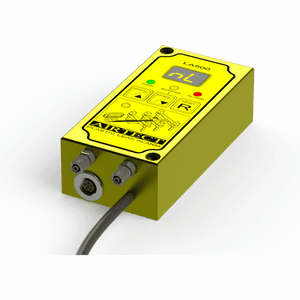

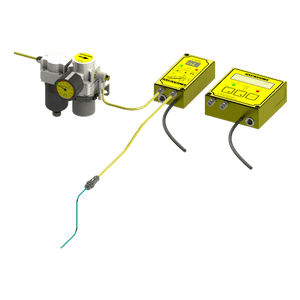

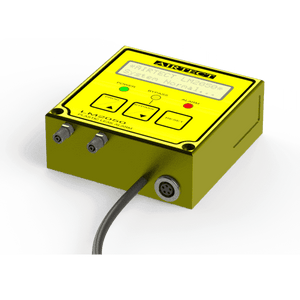

LA500 and LM2050 work as Single Zone IMM Nozzle Leak Detectors + Control/Display/Relay Interlock Modules for ‘STANDARD’ Leak Detection Manifolds

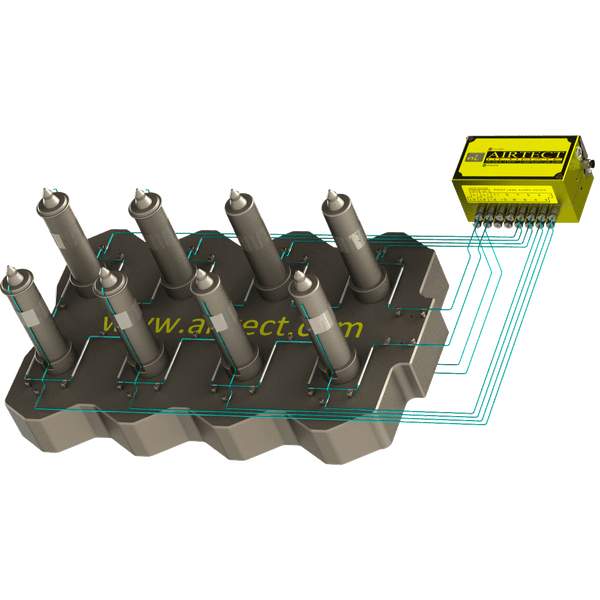

HOT RUNNER MOULD PROTECTION

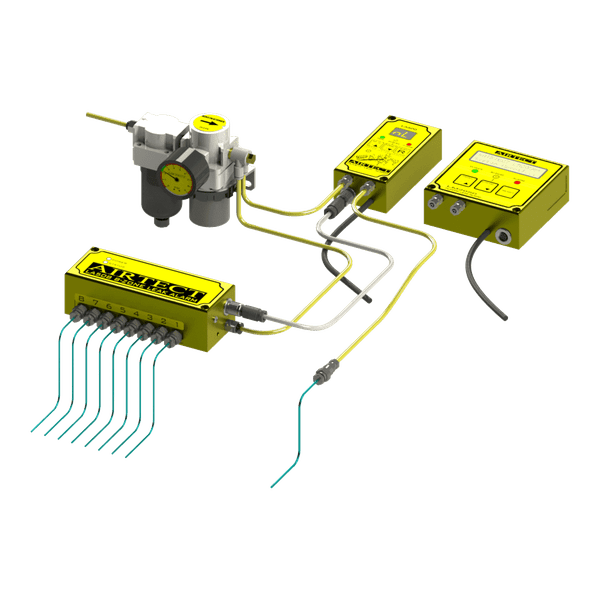

‘STANDARD’ 4, 8, 14 and 24-Zone Leak Detection Manifolds are used with either an LA500 or LM2050 Control/Display/Relay Interlock Module. These Manifolds can be ‘daisy chained’ to give up to 48 Zones.

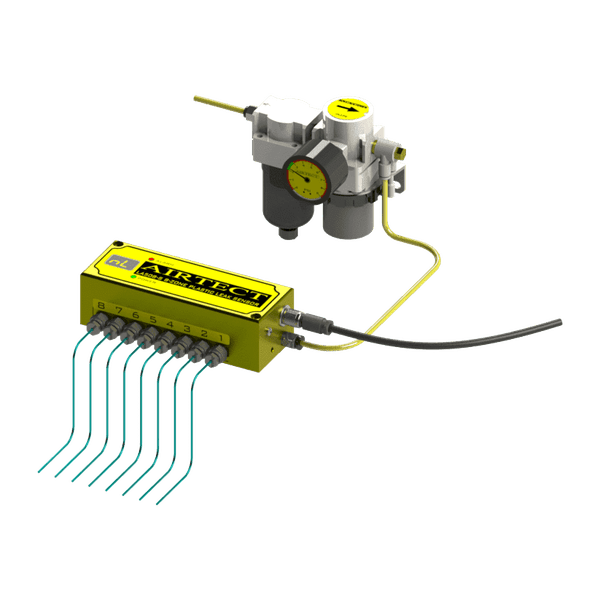

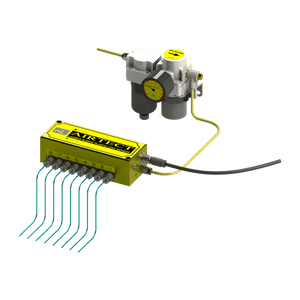

‘STAND-ALONE’ 4, 8, 16 and 24-Zone Leak Detection Manifolds have an integral Control/Display/Relay Interlock Module.
The ULTIMATE range of Leak Detection Manifolds have both POINT and CLOSED LOOP Leak Detection Zones and are available as ‘Stand-Alone’ units only. They are available as 6-Point Zones + 1 Loop Zone, 12-Point Zones + 2 Loop Zones and 20-Point Zones + 2 Loop Zones.
MODULAR OPTIONS. For added flexibility, both Standard and Standalone Manifolds can be used with a Modular Base Unit. The low cost Modular Base Unit is fixed to the mould, and the Modular Manifolds are then attached to the Base Units when the mould is installed into the IMM for production.
The Airtect Plastic Leak Alarm System is increasingly being deployed by quality moulders in order to save on maintenance costs, safeguard "lights out" production, and maximise annual up time.
Click on this link for technical details.
Additional Details
| zones | unit |
|---|---|
| 1 | Leak Detection Module |
| 1 | Leak Detection Unit |
| 4 | Standard Manifold (Handle) |
| 4 | Standard Manifold |
| 4 | Standard Manifold Unit |
| 4 | Standard Modular Base |
| 8 | Standard Manifold (Handle) |
| 8 | Standard Manifold |
| 8 | Standard Manifold Unit |
| 8 | Standard Modular Base |
| 16 | Standard Manifold (Handle) |
| 16 | Standard Manifold |
| 16 | Standard Modular Base |
| 24 | Standard Manifold (Handle) |
| 24 | Standard Manifold |
| 24 | Standard Modular Base |
| 4 | Stand Alone Manifold |
| 4 | Stand Alone Manifold (Handle) |
| 4 | Stand Alone Manifold Unit |
| 4 | Stand Alone Base Unit |
| 8 | Stand Alone Manifold |
| 8 | Stand Alone Manifold (Handle) |
| 8 | Stand Alone Manifold Unit |
| 8 | Stand Alone Base Unit |
| 16 | Stand Alone Manifold (Handle) |
| 16 | Stand Alone Manifold |
| 16 | Stand Alone Base Unit |
| 24 | Stand Alone Manifold (Handle) |
| 24 | Stand Alone Manifold |
| 24 | Stand Alone Base Unit |
| 2 | 2-Zone Tube Adaptor Manifold |
| 4 | 4 Zone Tube Adaptor Manifold |
| Accessories | 10 Meter Coil of Xmm OD Stainless Steel Tube |
| Accessories | 10 Meter Coil OF 4mm PU (plastic) |
| Accessories | 10 Meter Coil of Silicone Rubber Tubing |
| Accessories | NUT and OLIVE SET (5pcs) for Xmm OD Stainless Steel Tubing |
| Accessories | Joiner Fitting for Xmm OD Stainless Steel Tubing |
| Accessories | Joiner Fitting For 4mm PU Tube to 1.6mm or 2.0mm mm OD Stainless Steel Tubing |
| Accessories | Fixing Bracket Set (10pcs) for Stainless Steel Tubing |
| Accessories | Power/Communication Cable 0.6 or 1.5 Meters |
| Accessories | Power/Communication Cable 3 Meters |
| Accessories | Power/Communication Cable 5 Meters |
| Accessories | Power/Communication Cable 10 Meters |
| Accessories | Power/Relay Interlock Cable 3 Meters |
| Accessories | Power/Relay Interlock Cable 5 Meters |
| Accessories | Air Pressure Regulator with Pressure Gauge |
