Quick Change System

Quick Change EOAT system can apply to any robot in your facility. Benefits are that the system is a one-time investment, plus this system reduces the amount of time taken to change end of arm tooling.

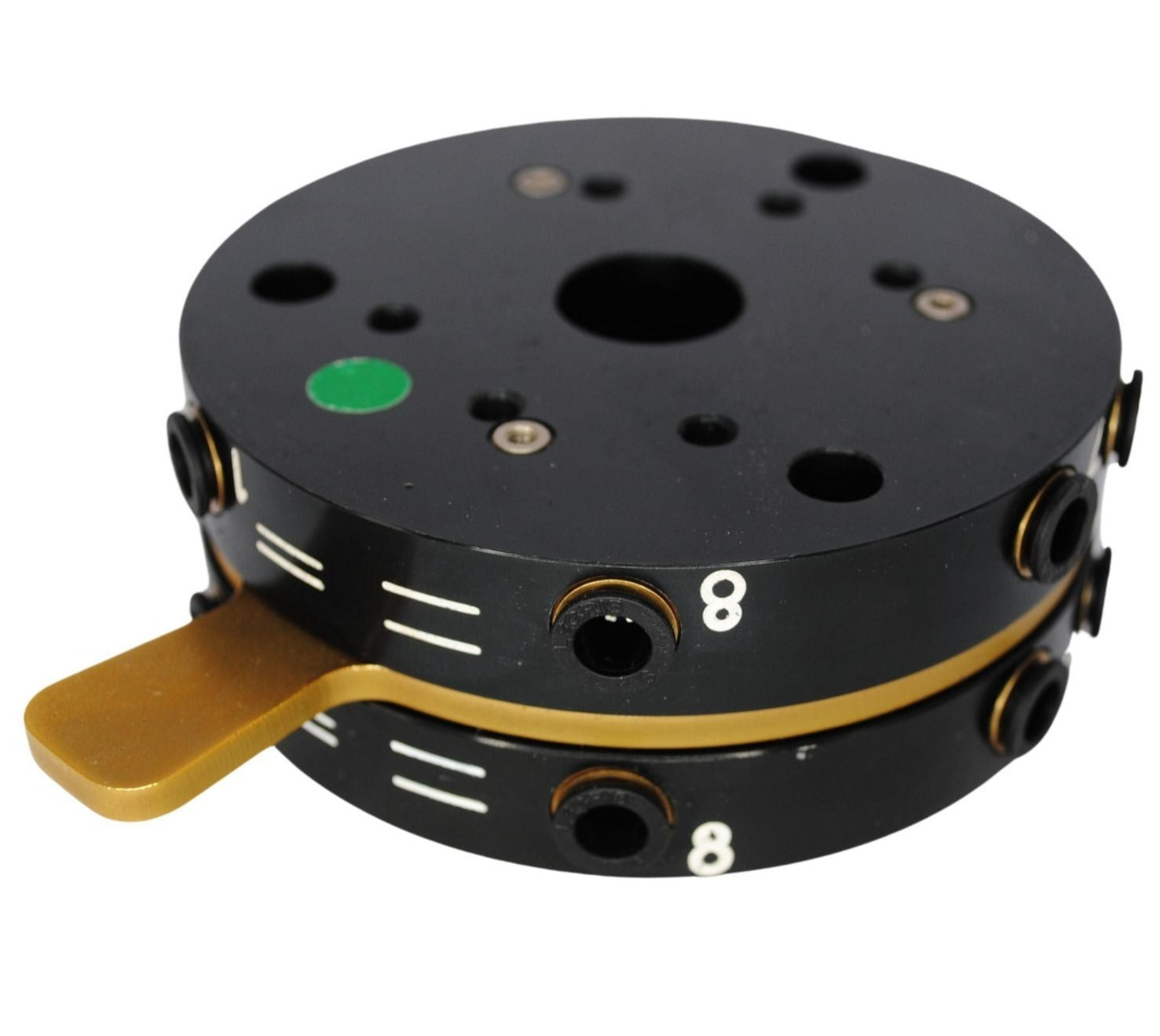

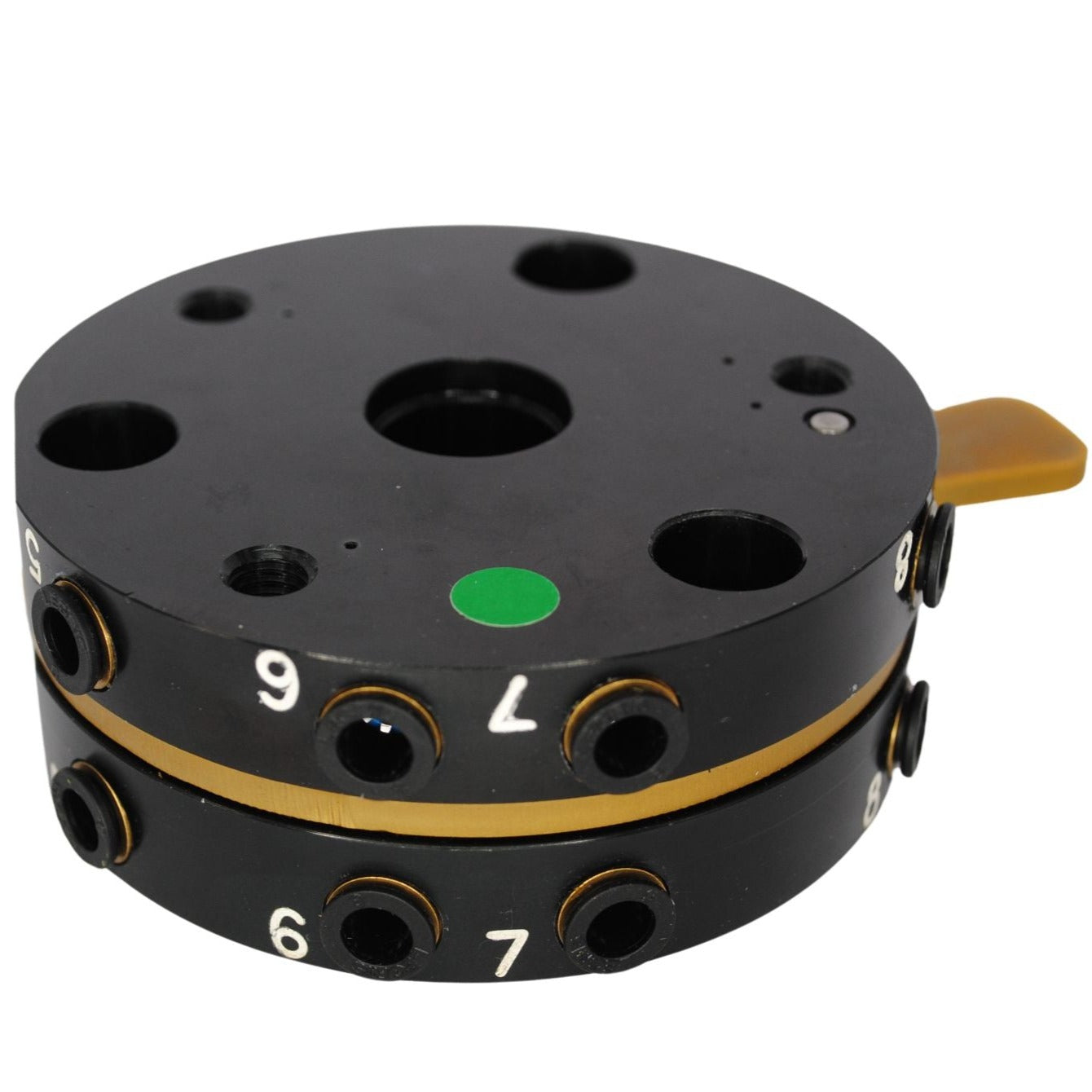

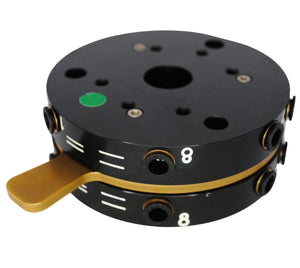

The male unit is permanently attached to the robot wrist and connected with the pneumatic supplies from the robot, the female unit is permanently fixed to the gripper with the pipe work from the gripper plugged straight into the plug-in connectors that are mounted on the outside diameter.

No bolts, Alan keys or spanners are required for the quick release unit.

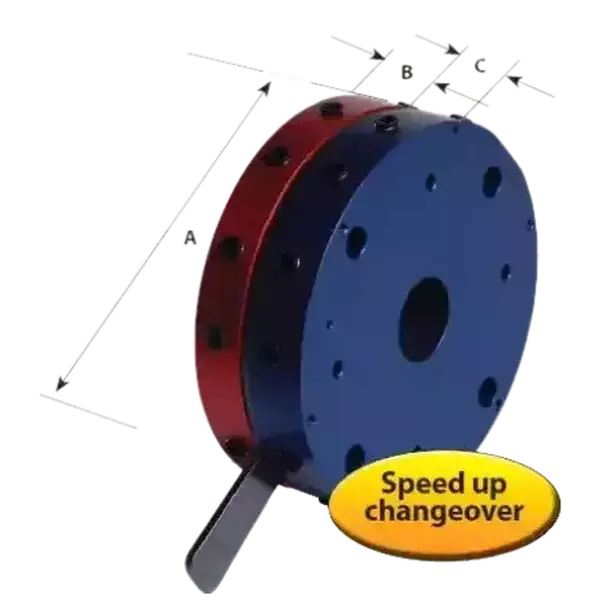

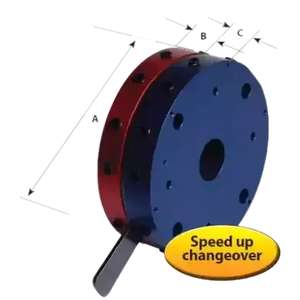

QR Type	Part	A	B	C	Weight	Loading
QR Complete Light Duty	ET-000803-497	90mm	34mm	14mm	0.57kg	30kg
QR-R Light Duty Robot Side	ET-000803-367	90mm	20mm	-	0.35kg	-
QR G Light Duty Gripper Side	ET-000803-368	90mm	-	14mm	0.22kg	-
QR Complete Heavy Duty	ET-800706-000	160mm	20mm	20mm	2.40kg	50kg
QR - R Robot Side Heavy Duty	ET-800706-100	160mm	20mm	-	1.50kg	-
QR - G Gripper Side Heavy Duty	ET-800706-200	160mm	-	20mm	0.08kg	-
Electrical Connector (Fits QR-R Male Half)	ET-000803-368-02	-	-	-	0.02kg	-
Electrical Connector (Fits QR-G Female Half)	ET-000803-367-01	-	-	-	0.02kg	-
