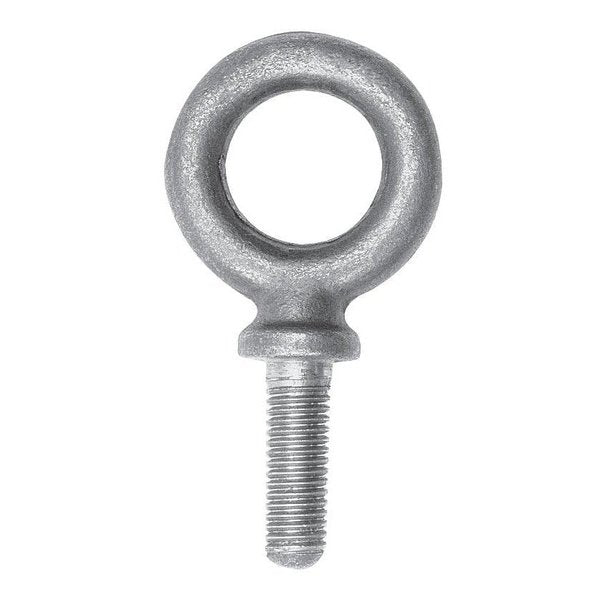

Eye Bolts

Original price £3.80 - Original price £94.52
Original price
£4.55
£3.80 - £94.52
Current price £4.55
Description

Forged C-1030 Carbon Steel Shoulder pattern heat treated, high tensile strength to BS4278. All minimum breaking strengths based on vertical loading in accordance with BS4278.

Bending tests performed on unthreaded sections to assure ability to bend through 45° without failure. Safe working load is for vertical loading and based on 25% minimum breaking strength.

Load
(kgs.)

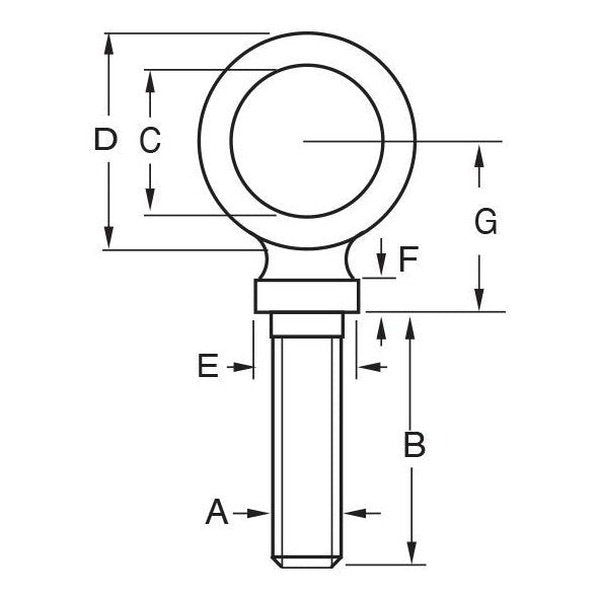

A Thread B Length E Flange C dia G D collar part no
150 M8 18 17 22 27 40 N EBM8
250 M10 18 17 22 27 40 N EBM10
320 M12 18 17 22 27 40 N EBM12
630 M16 23 23 29 34 51 N EBM16
1,000 M18 28 28 35 42 63 N EBM18
1,250 M20 32 32 40 47 70 N EBM20
1,600 M22 35 35 44 53 78 Y EBM22
2,000 M24 40 40 51 60 89 N EBM24
3,200 M30 50 53 64 77 112 N EBM30
4,000 M30 50 53 64 77 112 Y EBM30C
4,600 M36 EBM36
6,300 M36 EBM36C
8,000 M42 EBM42C
Thread Collared Comments Part no Price £ Quantity
M8 No EBM8 4.55
M10 No EBM10 3.80
M12 No EBM12 4.10
M16 No EBM16 5.53
M18 No EBM18 13.30
M20 No EBM20 11.00
M22 No EBM22 18.50
M24 No EBM24 19.50
M30 Yes EBM30C 29.50
M30 No EBM30 29.50
M36 Yes EBM36C 57.00
M36 No EBM36 57.00
M42 Yes EBM43 94.52
Thread
Collared
M8
No
EBM8
£4.55
M10
No
EBM10
£3.80
M12
No
EBM12
£4.10
M16
No
EBM16
£5.53
M18
No
EBM18
£13.30
M20
No
EBM20
£11.00
M22
No
EBM22
£18.50
M24
No
EBM24
£19.50
M30
Yes
EBM30C
£29.50
M30
No
EBM30
£29.50
M36
Yes
EBM36C
£57.00
M36
No
EBM36
£57.00
M42
Yes
EBM43
£94.52
M8 No EBM8 4.55
M10 No EBM10 3.80
M12 No EBM12 4.10
M16 No EBM16 5.53
M18 No EBM18 13.30
M20 No EBM20 11.00
M22 No EBM22 18.50
M24 No EBM24 19.50
M30 Yes EBM30C 29.50
M30 No EBM30 29.50
M36 Yes EBM36C 57.00
M36 No EBM36 57.00
M42 Yes EBM43 94.52
Additional Details
Thread Collared
M8 No
M10 No
M12 No
M16 No
M18 No
M20 No
M22 No
M24 No
M30 Yes
M30 No
M36 Yes
M36 No
M42 Yes
