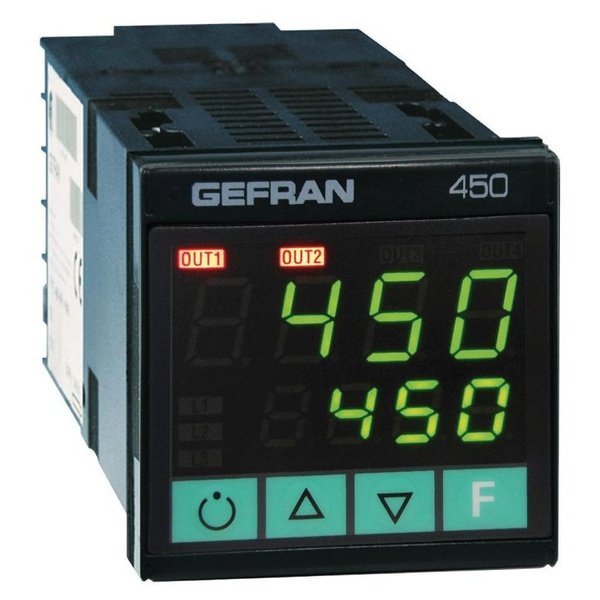

Temp Controller 1/16 Din

Temp Controller 2 x 5amp relay output. 100-240v input

Configurable Controller: can be programmed via PC link

• Universal input configurable from the faceplate or optional computer link
• Accuracy better than 0,2% f.s.
• Control output: relay or logic with Heat or Cool function
• 1 alarm with configurable function
• Self-tuning, Auto-tuning, Soft-start, Man/Auto function

Factory-configured to satisfy most industrial heating applications and can be modified from keyboard and from PC with a few parameters grouped on intuitive menus.

PC programming kit available; consisting of a cable and a user-friendly program for Windows with Wizard pages, oscilloscope for process analysis, saving of parameter recipes, and factory parameter reset.

Software protection password allows limited access to  parameters to various levels.

For full details and specifications, click here

CONTROL

On/Off, P, PD, PID either for heating or cooling. Parameters configurable from the faceplate. Controller outputs are configurable as control output and alarm output. Available in std. 5A/250VAC relay version or logic signal version to drive solid state relays.

ALARMS

• 1 alarm. Direct or inverse function.
• Alarm point may be set anywhere within the configured scale.
• LBA (Loop Break Alarm) function alarm
• Alarm hysteresis configurable

INPUT TC: J, K, R, S, T, B, E, N, RTD 3-wires
OUTPUT: Outputs fully configurable for control and single alarm function.
Relay: With rating: 5A/250 VAC
POWER SUPPLY: (Standard) 100...240 V a.c. ±10%
