Nozzle Body - Sandretto Removable Tip Nozzles

Sandretto Removable Tip Nozzles

£134.38 - £671.88
£134.38
£134.38 - £671.88
£134.38
Description

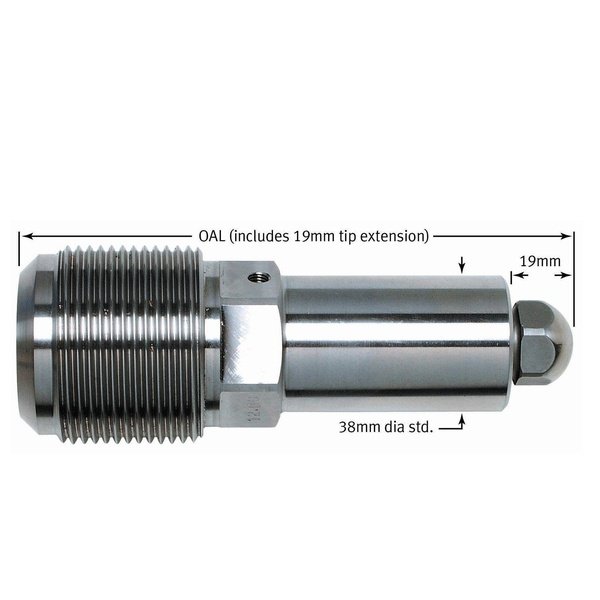

Sandretto Nozzle Body

Nozzle body with thread to suit your machine. 11/2" body diameter accepts standard heater bands and 7/8"-14 female thread at front to accept removable nozzle tips.
Manufactured in our workshops from high-quality EN19 pre heat-treated steel. Machined to suit the thread of your machine and accept standard low-cost replacement tips.
Any size or specification made to your requirements. Simply find your machine thread below for part number:
To order special nozzles, or sizes not shown above, click here or please call our sales office 01536 206653

    Thread R/O Part No Machine Model
    48x3 24mm SBK Micro 24mm screw
    48x3 30mm SY New Series 8
    48x3 36mm SBS Series 6 taper seat
    50x3 32mm SBM Micro 32mm Screw
    50x3 36mm SBI Micro 36mm Screw
    50x3 32mm SBG Micro 32 full spear 8 deg
    50x3 35mm SQ New Series 8
    50x3 Taper Seat 35mm SK 135T 95B Series 7 170T
    50x4 35mm SBF 2GV50
    55x3 40mm SPN Series 7 7gv 60/200 taper seat
    55x4 35mm SR Series 9
    76x3 60mm SBD was SZZ
    85x3 55mm SBP Mega
    85x3 60mm SBB S8
    85x3 70mm SBC S7
    105x4 80mm SHH S8 1000
    Part Number Length (mm) Comments Part no Price £ Quantity
    SBK 125 SBK5 134.38
    SBK 150 SBK6 146.20
    SBK 175 SBK7 155.88
    SBK 300 SBK12 263.38
    SY 125 SY5 134.38
    SY 150 SY6 146.20
    SY 175 SY7 155.88
    SY 200 SY8 177.38
    SBS 125 SBS5 134.38
    SBS 150 SBS6 146.20
    SBM 125 SBM5 134.38
    SBM 150 SBM6 146.20
    SBM 175 SBM7 155.88
    SBI 125 SBI5 134.38
    SBI 175 SBI7 155.88
    SBG 125 SBG5 134.38
    SBG 150 SBG6 146.20
    SBG 185 SBG7 155.88
    SQ 125 SQ5 134.38
    SQ 150 SQ6 146.20
    SQ 175 SQ7 155.88
    SQ 300 SQ12 263.38
    SQ 200 SQ8 177.38
    SQ 250 SQ10 221.45
    SQ 225 SQ9 193.50
    SK 125 SK5 134.38
    SK 150 SK6 146.20
    SK 175 SK7 155.88
    SK 300 SK12 263.38
    SK 200 SK8 177.38
    SK 250 SK10 221.45
    SK 225 SK9 193.50
    SBF 150 SBF6 146.20
    SPN 125 SPN5 188.13
    SPN 150 SPN6 196.26
    SPN 200 SPN8 216.08
    SBD 175 SBD7 279.50
    SBD 200 SBD8 306.38
    SBD 250 SBD10 334.33
    SBP 150 SBP6 264.45
    SBP 175 SBP7 279.50
    SBP 200 SBP8 306.38
    SBP 250 SBP10 334.33
    SBP 225 SBP9 311.75
    SBB 175 SBB7 279.50
    SBB 300 SBB12 360.13
    SBB 200 SBB8 306.38
    SBB 250 SBB10 334.33
    SBB 225 SBB9 311.75
    SBC 200 SBC8 306.38
    SHH 300 SHH12 671.88
    SHH 200 SHH8 439.41
    SHH 250 SHH10 480.26
