Nozzle Tip - Nylon Type Removable Nozzle Tip

Nylon Type Removable Nozzle Tip

£14.95 - £43.00
£14.95
£14.95 - £43.00
£14.95
Description

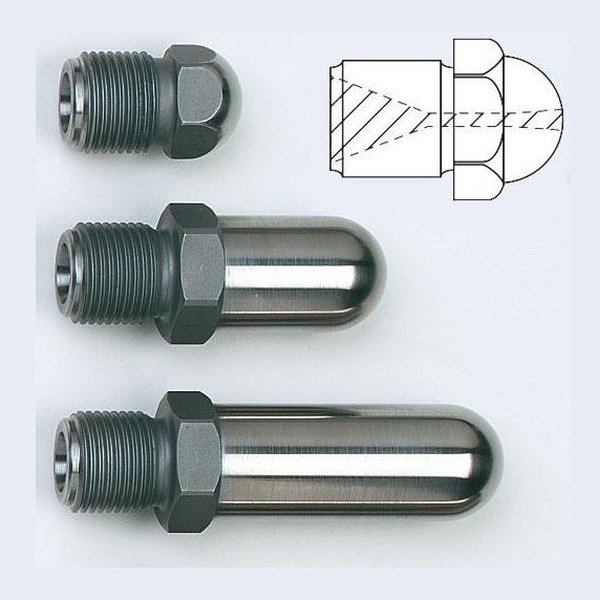

Hardened Chrome Steel Nylon Nozzle tips

  • 38, 70 or 95mm length (including thread)
  • 48/52 rc Hardened chrome vanadium tungsten tool steel
  • 7/8"-14 thread for use in all regular removable tip nozzles
  • Available with any combination or radius and orifice
  • Available in nickel copper for improved heat transfer
  • Smooth polished internal bore improves flow
  • Polished radius for improved seal with bushing

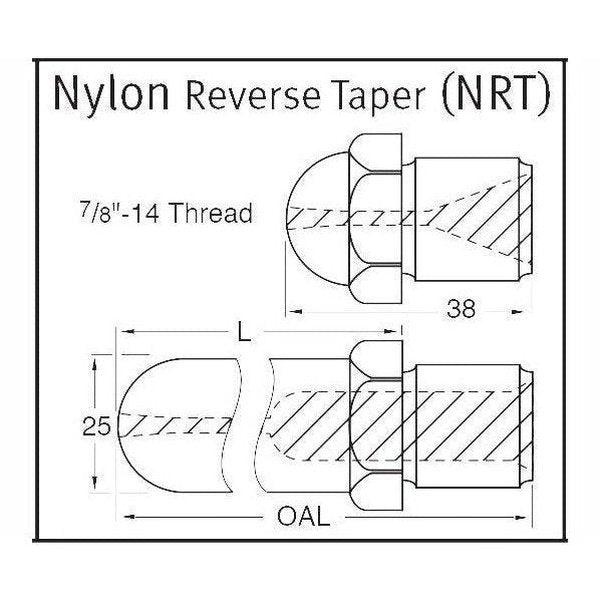

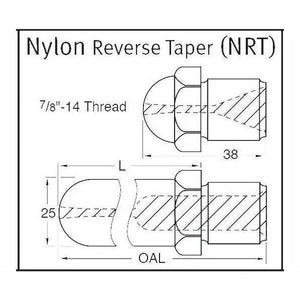

Nylon Reverse taper, provides antidrool reverse taper in tip to freeze slug (due to expansion) at tip, enabling drool to be minimized.

length radius orifice Comments Part no Price £ Quantity
38mm flat 3mm Length 38mm, Radius: flat, Orifice: 3mm NRT10K 14.95
38mm flat 4mm Length 38mm, Radius: flat, Orifice: 4mm NRT10L 14.95
38mm flat 5mm Length 38mm, Radius: flat, Orifice: 5mm NRT10M 14.95
38mm flat 6mm Length 38mm, Radius: flat, Orifice: 6mm NRT10N 14.95
38mm flat 8mm Length 38mm, Radius: flat, Orifice: 8mm NRT10O 14.95
38mm flat 9.5mm Length 38mm, Radius: flat, Orifice: 9.5mm NRT10P 14.95
38mm 60 cone 3mm Length 38mm, Radius: 60 cone, Orifice: 3mm NRT12K 18.00
38mm 90 cone 3mm Length 38mm, Radius: 90 cone, Orifice: 3mm NRT13K 18.00
38mm 90 cone 4mm Length 38mm, Radius: 90 cone, Orifice: 4mm NRT13L 18.00
38mm 90 cone 5mm Length 38mm, Radius: 90 cone, Orifice: 5mm NRT13M 18.00
38mm 90 cone 6mm Length 38mm, Radius: 90 cone, Orifice: 6mm NRT13N 18.00
38mm 120 cone 3mm Length 38mm, Radius: 120 cone, Orifice: 3mm NRT14K 18.00
38mm 12.7mm 3mm Length 38mm, Radius: 12.7mm, Orifice: 3mm NRT15K 14.95
38mm 12.7mm 4mm Length 38mm, Radius: 12.7mm, Orifice: 4mm NRT15L 14.95
38mm 12.7mm 5mm Length 38mm, Radius: 12.7mm, Orifice: 5mm NRT15M 14.95
38mm 12.7mm 6mm Length 38mm, Radius: 12.7mm, Orifice: 6mm NRT15N 14.95
38mm 12.7mm 8mm Length 38mm, Radius: 12.7mm, Orifice: 8mm NRT15O 14.95
38mm 12.7mm 9.5mm Length 38mm, Radius: 12.7mm, Orifice: 9.5mm NRT15P 14.95
38mm 15mm 3mm Length 38mm, Radius: 15mm, Orifice: 3mm NRT16K 14.95
38mm 15mm 4mm Length 38mm, Radius: 15mm, Orifice: 4mm NRT16L 14.95
38mm 15mm 5mm Length 38mm, Radius: 15mm, Orifice: 5mm NRT16M 14.95
38mm 15mm 6mm Length 38mm, Radius: 15mm, Orifice: 6mm NRT16N 14.95
38mm 15mm 8mm Length 38mm, Radius: 15mm, Orifice: 8mm NRT16O 14.95
38mm 15mm 9.5mm Length 38mm, Radius: 15mm, Orifice: 9.5mm NRT16P 14.95
38mm 19mm 3mm Length 38mm, Radius: 19mm, Orifice: 3mm NRT17K 14.95
38mm 19mm 4mm Length 38mm, Radius: 19mm, Orifice: 4mm NRT17L 14.95
38mm 19mm 5mm Length 38mm, Radius: 19mm, Orifice: 5mm NRT17M 14.95
38mm 19mm 6mm Length 38mm, Radius: 19mm, Orifice: 6mm NRT17N 14.95
38mm 19mm 8mm Length 38mm, Radius: 19mm, Orifice: 8mm NRT17O 14.95
38mm 19mm 9.5mm Length 38mm, Radius: 19mm, Orifice: 9.5mm NRT17P 14.95
38mm 35mm 3mm Length 38mm, Radius: 35mm, Orifice: 3mm NRT18K 14.95
38mm 35mm 4mm Length 38mm, Radius: 35mm, Orifice: 4mm NRT18L 14.95
38mm 35mm 5mm Length 38mm, Radius: 35mm, Orifice: 5mm NRT18M 14.95
38mm 35mm 6mm Length 38mm, Radius: 35mm, Orifice: 6mm NRT18N 14.95
38mm 35mm 8mm Length 38mm, Radius: 35mm, Orifice: 8mm NRT18O 14.95
38mm 35mm 9.5mm Length 38mm, Radius: 35mm, Orifice: 9.5mm NRT18P 14.95
70mm flat 3mm Length 70mm, Radius: flat, Orifice: 3mm NRT20K 29.00
70mm flat 4mm Length 70mm, Radius: flat, Orifice: 4mm NRT20L 29.00
70mm 90 cone 3mm Length 70mm, Radius: 90 cone, Orifice: 3mm NRT23K 29.00
70mm 90 cone 4mm Length 70mm, Radius: 90 cone, Orifice: 4mm NRT23L 29.00
70mm 90 cone 5mm Length 70mm, Radius: 90 cone, Orifice: 5mm NRT23M 29.00
70mm 90 cone 6mm Length 70mm, Radius: 90 cone, Orifice: 6mm NRT23N 29.00
70mm 120 cone 3mm Length 70mm, Radius: 120 cone, Orifice: 3mm NRT24K 29.00
70mm 12.7mm 3mm Length 70mm, Radius: 12.7mm, Orifice: 3mm NRT25K 29.00
70mm 12.7mm 4mm Length 70mm, Radius: 12.7mm, Orifice: 4mm NRT25L 29.00
70mm 12.7mm 5mm Length 70mm, Radius: 12.7mm, Orifice: 5mm NRT25M 29.00
70mm 12.7mm 6mm Length 70mm, Radius: 12.7mm, Orifice: 6mm NRT25N 29.00
70mm 12.7mm 8mm Length 70mm, Radius: 12.7mm, Orifice: 8mm NRT25O 29.00
70mm 15mm 3mm Length 70mm, Radius: 15mm, Orifice: 3mm NRT26K 29.00
70mm 15mm 4mm Length 70mm, Radius: 15mm, Orifice: 4mm NRT26L 29.00
70mm 15mm 5mm Length 70mm, Radius: 15mm, Orifice: 5mm NRT26M 29.00
70mm 15mm 6mm Length 70mm, Radius: 15mm, Orifice: 6mm NRT26N 29.00
70mm 15mm 8mm Length 70mm, Radius: 15mm, Orifice: 8mm NRT26O 29.00
70mm 19mm 3mm Length 70mm, Radius: 19mm, Orifice: 3mm NRT27K 29.00
70mm 19mm 4mm Length 70mm, Radius: 19mm, Orifice: 4mm NRT27L 29.00
70mm 19mm 5mm Length 70mm, Radius: 19mm, Orifice: 5mm NRT27M 29.00
70mm 19mm 6mm Length 70mm, Radius: 19mm, Orifice: 6mm NRT27N 29.00
70mm 19mm 8mm Length 70mm, Radius: 19mm, Orifice: 8mm NRT27O 29.00
70mm 35mm 3mm Length 70mm, Radius: 35mm, Orifice: 3mm NRT28K 29.00
70mm 35mm 4mm Length 70mm, Radius: 35mm, Orifice: 4mm NRT28L 29.00
70mm 35mm 5mm Length 70mm, Radius: 35mm, Orifice: 5mm NRT28M 29.00
70mm 35mm 6mm Length 70mm, Radius: 35mm, Orifice: 6mm NRT28N 29.00
95mm flat 3mm Length 95mm, Radius: flat, Orifice: 3mm NRT30K 37.00
95mm flat 6mm Length 95mm, Radius: flat, Orifice: 6mm NRT30N 37.00
95mm flat 8mm Length 95mm, Radius: flat, Orifice: 8mm NRT30O 37.00
95mm 90 cone 3mm Length 95mm, Radius: 90 cone, Orifice: 3mm NRT33K 37.00
95mm 12.7mm 3mm Length 95mm, Radius: 12.7mm, Orifice: 3mm NRT35K 37.00
95mm 12.7mm 4mm Length 95mm, Radius: 12.7mm, Orifice: 4mm NRT35L 37.00
95mm 12.7mm 5mm Length 95mm, Radius: 12.7mm, Orifice: 5mm NRT35M 37.00
95mm 12.7mm 8mm Length 95mm, Radius: 12.7mm, Orifice: 8mm NRT35O 37.00
95mm 15mm 3mm Length 95mm, Radius: 15mm, Orifice: 3mm NRT36K 37.00
95mm 15mm 4mm Length 95mm, Radius: 15mm, Orifice: 4mm NRT36L 37.00
95mm 15mm 6mm Length 95mm, Radius: 15mm, Orifice: 6mm NRT36N 37.00
95mm 19mm 3mm Length 95mm, Radius: 19mm, Orifice: 3mm NRT37K 37.00
95mm 19mm 4mm Length 95mm, Radius: 19mm, Orifice: 4mm NRT37L 37.00
95mm 19mm 5mm Length 95mm, Radius: 19mm, Orifice: 5mm NRT37M 37.00
95mm 19mm 6mm Length 95mm, Radius: 19mm, Orifice: 6mm NRT37N 37.00
95mm 19mm 8mm Length 95mm, Radius: 19mm, Orifice: 8mm NRT37O 37.00
95mm 35mm 3mm Length 95mm, Radius: 35mm, Orifice: 3mm NRT38K 37.00
95mm 35mm 4mm Length 95mm, Radius: 35mm, Orifice: 4mm NRT38L 37.00
127mm flat 3mm Length 127mm, Radius: flat, Orifice: 3mm NRT40K 43.00
127mm flat 4mm Length 127mm, Radius: flat, Orifice: 4mm NRT40L 43.00
127mm flat 6mm Length 127mm, Radius: flat, Orifice: 6mm NRT40N 43.00
127mm 12.7mm 3mm Length 127mm, Radius: 12.7mm, Orifice: 3mm NRT45K 43.00
127mm 12.7mm 4mm Length 127mm, Radius: 12.7mm, Orifice: 4mm NRT45L 43.00
127mm 12.7mm 6mm Length 127mm, Radius: 12.7mm, Orifice: 6mm NRT45N 43.00
127mm 15mm 3mm Length 127mm, Radius: 15mm, Orifice: 3mm NRT46K 43.00
127mm 19mm 3mm Length 127mm, Radius: 19mm, Orifice: 3mm NRT47K 43.00
127mm 19mm 4mm Length 127mm, Radius: 19mm, Orifice: 4mm NRT47L 43.00
127mm 19mm 5mm Length 127mm, Radius: 19mm, Orifice: 5mm NRT47M 43.00
127mm 19mm 6mm Length 127mm, Radius: 19mm, Orifice: 6mm NRT47N 43.00
127mm 19mm 9.5mm Length 127mm, Radius: 19mm, Orifice: 9.5mm NRT47P 43.00
