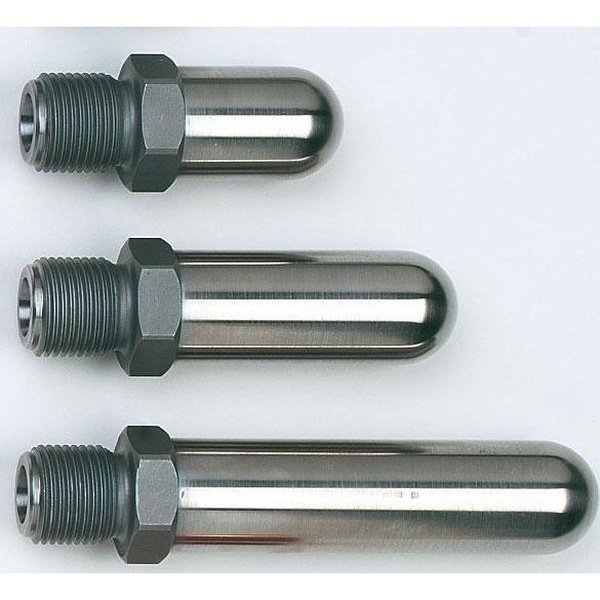

GP Extended Nozzle Tip

Original price £29.00 - Original price £43.00
Original price
£29.00
£29.00 - £43.00
Current price £29.00
Description

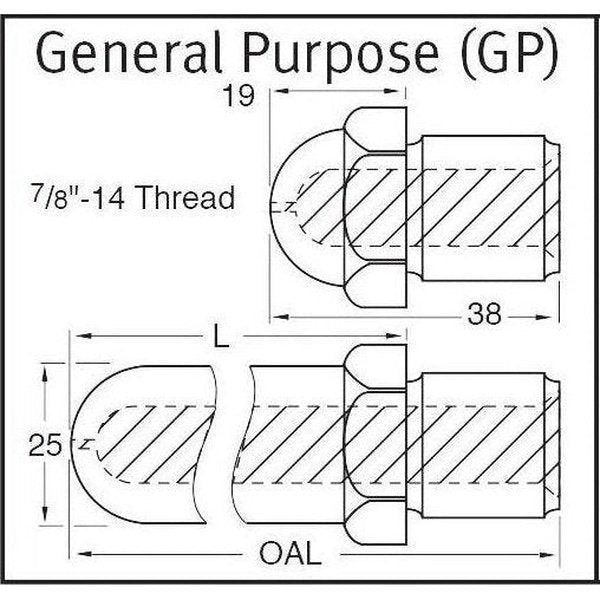

Hardened Chrome Steel General Purpose Extended Nozzle tips

For general-purpose applications, a good, all-round flow path with smooth internal flow characteristics and minimal restriction to ensure minimum back-pressure.

  • 70, 95 or 127mm length (including thread)
  • 48/52 rc Hardened chrome vanadium tungsten tool steel
  • 7/8"-14 thread for use in all regular removable tip nozzles
  • Available with any combination or radius and orifice
  • Available in nickel copper for improved heat transfer
  • Smooth polished internal bore improves flow
  • Polished radius for improved seal with bushing
length radius orifice Comments Part no Price £ Quantity
70mm flat 1.5mm Length 70mm, Radius: flat, Orifice: 1.5mm GP20I 29.00
70mm flat 2.5mm Length 70mm, Radius: flat, Orifice: 2.5mm GP20J 29.00
70mm flat 3mm Length 70mm, Radius: flat, Orifice: 3mm GP20K 29.00
70mm flat 4mm Length 70mm, Radius: flat, Orifice: 4mm GP20L 29.00
70mm flat 6mm Length 70mm, Radius: flat, Orifice: 6mm GP20N 29.00
70mm flat 8mm Length 70mm, Radius: flat, Orifice: 8mm GP20O 29.00
70mm 12.7mm 1.5mm Length 70mm, Radius: 12.7mm, Orifice: 1.5mm GP25I 29.00
70mm 12.7mm 2.5mm Length 70mm, Radius: 12.7mm, Orifice: 2.5mm GP25J 29.00
70mm 12.7mm 3mm Length 70mm, Radius: 12.7mm, Orifice: 3mm GP25K 29.00
70mm 12.7mm 4mm Length 70mm, Radius: 12.7mm, Orifice: 4mm GP25L 29.00
70mm 12.7mm 5mm Length 70mm, Radius: 12.7mm, Orifice: 5mm GP25M 29.00
70mm 12.7mm 6mm Length 70mm, Radius: 12.7mm, Orifice: 6mm GP25N 29.00
70mm 12.7mm 8mm Length 70mm, Radius: 12.7mm, Orifice: 8mm GP25O 29.00
70mm 12.7mm 9.5mm Length 70mm, Radius: 12.7mm, Orifice: 9.5mm GP25P 29.00
70mm 15mm 1.5mm Length 70mm, Radius: 15mm, Orifice: 1.5mm GP26I 29.00
70mm 15mm 2.5mm Length 70mm, Radius: 15mm, Orifice: 2.5mm GP26J 29.00
70mm 15mm 3mm Length 70mm, Radius: 15mm, Orifice: 3mm GP26K 29.00
70mm 15mm 4mm Length 70mm, Radius: 15mm, Orifice: 4mm GP26L 29.00
70mm 15mm 5mm Length 70mm, Radius: 15mm, Orifice: 5mm GP26M 29.00
70mm 15mm 6mm Length 70mm, Radius: 15mm, Orifice: 6mm GP26N 29.00
70mm 15mm 8mm Length 70mm, Radius: 15mm, Orifice: 8mm GP26O 29.00
70mm 15mm 9.5mm Length 70mm, Radius: 15mm, Orifice: 9.5mm GP26P 29.00
70mm 19mm 1.5mm Length 70mm, Radius: 19mm, Orifice: 1.5mm GP27I 29.00
70mm 19mm 2.5mm Length 70mm, Radius: 19mm, Orifice: 2.5mm GP27J 29.00
70mm 19mm 3mm Length 70mm, Radius: 19mm, Orifice: 3mm GP27K 29.00
70mm 19mm 4mm Length 70mm, Radius: 19mm, Orifice: 4mm GP27L 29.00
70mm 19mm 5mm Length 70mm, Radius: 19mm, Orifice: 5mm GP27M 29.00
70mm 19mm 6mm Length 70mm, Radius: 19mm, Orifice: 6mm GP27N 29.00
70mm 35mm 1.5mm Length 70mm, Radius: 35mm, Orifice: 1.5mm GP28I 29.00
70mm 35mm 2.5mm Length 70mm, Radius: 35mm, Orifice: 2.5mm GP28J 29.00
70mm 35mm 3mm Length 70mm, Radius: 35mm, Orifice: 3mm GP28K 29.00
70mm 35mm 4mm Length 70mm, Radius: 35mm, Orifice: 4mm GP28L 29.00
70mm 35mm 5mm Length 70mm, Radius: 35mm, Orifice: 5mm GP28M 29.00
70mm 35mm 6mm Length 70mm, Radius: 35mm, Orifice: 6mm GP28N 29.00
70mm 35mm 8mm Length 70mm, Radius: 35mm, Orifice: 8mm GP28O 29.00
95mm flat 1.5mm Length 95mm, Radius: flat, Orifice: 1.5mm GP30I 37.00
95mm flat 2.5mm Length 95mm, Radius: flat, Orifice: 2.5mm GP30J 37.00
95mm flat 3mm Length 95mm, Radius: flat, Orifice: 3mm GP30K 37.00
95mm flat 4mm Length 95mm, Radius: flat, Orifice: 4mm GP30L 37.00
95mm 12.7mm 1.5mm Length 95mm, Radius: 12.7mm, Orifice: 1.5mm GP35I 37.00
95mm 12.7mm 2.5mm Length 95mm, Radius: 12.7mm, Orifice: 2.5mm GP35J 37.00
95mm 12.7mm 3mm Length 95mm, Radius: 12.7mm, Orifice: 3mm GP35K 37.00
95mm 12.7mm 4mm Length 95mm, Radius: 12.7mm, Orifice: 4mm GP35L 37.00
95mm 12.7mm 5mm Length 95mm, Radius: 12.7mm, Orifice: 5mm GP35M 37.00
95mm 12.7mm 6mm Length 95mm, Radius: 12.7mm, Orifice: 6mm GP35N 37.00
95mm 12.7mm 8mm Length 95mm, Radius: 12.7mm, Orifice: 8mm GP35O 37.00
95mm 15mm 1.5mm Length 95mm, Radius: 15mm, Orifice: 1.5mm GP36I 37.00
95mm 15mm 2.5mm Length 95mm, Radius: 15mm, Orifice: 2.5mm GP36J 37.00
95mm 15mm 3mm Length 95mm, Radius: 15mm, Orifice: 3mm GP36K 37.00
95mm 15mm 4mm Length 95mm, Radius: 15mm, Orifice: 4mm GP36L 37.00
95mm 15mm 5mm Length 95mm, Radius: 15mm, Orifice: 5mm GP36M 37.00
95mm 15mm 6mm Length 95mm, Radius: 15mm, Orifice: 6mm GP36N 37.00
95mm 15mm 8mm Length 95mm, Radius: 15mm, Orifice: 8mm GP36O 37.00
95mm 19mm 1.5mm Length 95mm, Radius: 19mm, Orifice: 1.5mm GP37I 37.00
95mm 19mm 2.5mm Length 95mm, Radius: 19mm, Orifice: 2.5mm GP37J 37.00
95mm 19mm 3mm Length 95mm, Radius: 19mm, Orifice: 3mm GP37K 37.00
95mm 19mm 4mm Length 95mm, Radius: 19mm, Orifice: 4mm GP37L 37.00
95mm 19mm 5mm Length 95mm, Radius: 19mm, Orifice: 5mm GP37M 37.00
95mm 19mm 6mm Length 95mm, Radius: 19mm, Orifice: 6mm GP37N 37.00
95mm 19mm 8mm Length 95mm, Radius: 19mm, Orifice: 8mm GP37O 37.00
95mm 35mm 1.5mm Length 95mm, Radius: 35mm, Orifice: 1.5mm GP38I 37.00
95mm 35mm 3mm Length 95mm, Radius: 35mm, Orifice: 3mm GP38K 37.00
95mm 35mm 6mm Length 95mm, Radius: 35mm, Orifice: 6mm GP38N 37.00
127mm flat 1.5mm Length 127mm, Radius: flat, Orifice: 1.5mm GP40I 43.00
127mm flat 2.5mm Length 127mm, Radius: flat, Orifice: 2.5mm GP40J 43.00
127mm flat 3mm Length 127mm, Radius: flat, Orifice: 3mm GP40K 43.00
127mm 12.7mm 1.5mm Length 127mm, Radius: 12.7mm, Orifice: 1.5mm GP45I 43.00
127mm 12.7mm 2.5mm Length 127mm, Radius: 12.7mm, Orifice: 2.5mm GP45J 43.00
127mm 12.7mm 3mm Length 127mm, Radius: 12.7mm, Orifice: 3mm GP45K 43.00
127mm 12.7mm 4mm Length 127mm, Radius: 12.7mm, Orifice: 4mm GP45L 43.00
127mm 12.7mm 5mm Length 127mm, Radius: 12.7mm, Orifice: 5mm GP45M 43.00
127mm 12.7mm 6mm Length 127mm, Radius: 12.7mm, Orifice: 6mm GP45N 43.00
127mm 15mm 1.5mm Length 127mm, Radius: 15mm, Orifice: 1.5mm GP46I 43.00
127mm 15mm 2.5mm Length 127mm, Radius: 15mm, Orifice: 2.5mm GP46J 43.00
127mm 15mm 3mm Length 127mm, Radius: 15mm, Orifice: 3mm GP46K 43.00
127mm 15mm 4mm Length 127mm, Radius: 15mm, Orifice: 4mm GP46L 43.00
127mm 15mm 5mm Length 127mm, Radius: 15mm, Orifice: 5mm GP46M 43.00
127mm 15mm 6mm Length 127mm, Radius: 15mm, Orifice: 6mm GP46N 43.00
127mm 19mm 3mm Length 127mm, Radius: 19mm, Orifice: 3mm GP47K 43.00
127mm 19mm 4mm Length 127mm, Radius: 19mm, Orifice: 4mm GP47L 43.00
127mm 19mm 5mm Length 127mm, Radius: 19mm, Orifice: 5mm GP47M 43.00
127mm 19mm 6mm Length 127mm, Radius: 19mm, Orifice: 6mm GP47N 43.00
127mm 35mm 3mm Length 127mm, Radius: 35mm, Orifice: 3mm GP48K 43.00
127mm 35mm 4mm Length 127mm, Radius: 35mm, Orifice: 4mm GP48L 43.00
127mm 35mm 6mm Length 127mm, Radius: 35mm, Orifice: 6mm GP48N 43.00
length
radius
orifice
70mm
flat
1.5mm
GP20I
£29.00
70mm
flat
2.5mm
GP20J
£29.00
70mm
flat
3mm
GP20K
£29.00
70mm
flat
4mm
GP20L
£29.00
70mm
flat
6mm
GP20N
£29.00
70mm
flat
8mm
GP20O
£29.00
70mm
12.7mm
1.5mm
GP25I
£29.00
70mm
12.7mm
2.5mm
GP25J
£29.00
70mm
12.7mm
3mm
GP25K
£29.00
70mm
12.7mm
4mm
GP25L
£29.00
70mm
12.7mm
5mm
GP25M
£29.00
70mm
12.7mm
6mm
GP25N
£29.00
70mm
12.7mm
8mm
GP25O
£29.00
70mm
12.7mm
9.5mm
GP25P
£29.00
70mm
15mm
1.5mm
GP26I
£29.00
70mm
15mm
2.5mm
GP26J
£29.00
70mm
15mm
3mm
GP26K
£29.00
70mm
15mm
4mm
GP26L
£29.00
70mm
15mm
5mm
GP26M
£29.00
70mm
15mm
6mm
GP26N
£29.00
70mm
15mm
8mm
GP26O
£29.00
70mm
15mm
9.5mm
GP26P
£29.00
70mm
19mm
1.5mm
GP27I
£29.00
70mm
19mm
2.5mm
GP27J
£29.00
70mm
19mm
3mm
GP27K
£29.00
70mm
19mm
4mm
GP27L
£29.00
70mm
19mm
5mm
GP27M
£29.00
70mm
19mm
6mm
GP27N
£29.00
70mm
35mm
1.5mm
GP28I
£29.00
70mm
35mm
2.5mm
GP28J
£29.00
70mm
35mm
3mm
GP28K
£29.00
70mm
35mm
4mm
GP28L
£29.00
70mm
35mm
5mm
GP28M
£29.00
70mm
35mm
6mm
GP28N
£29.00
70mm
35mm
8mm
GP28O
£29.00
95mm
flat
1.5mm
GP30I
£37.00
95mm
flat
2.5mm
GP30J
£37.00
95mm
flat
3mm
GP30K
£37.00
95mm
flat
4mm
GP30L
£37.00
95mm
12.7mm
1.5mm
GP35I
£37.00
95mm
12.7mm
2.5mm
GP35J
£37.00
95mm
12.7mm
3mm
GP35K
£37.00
95mm
12.7mm
4mm
GP35L
£37.00
95mm
12.7mm
5mm
GP35M
£37.00
95mm
12.7mm
6mm
GP35N
£37.00
95mm
12.7mm
8mm
GP35O
£37.00
95mm
15mm
1.5mm
GP36I
£37.00
95mm
15mm
2.5mm
GP36J
£37.00
95mm
15mm
3mm
GP36K
£37.00
95mm
15mm
4mm
GP36L
£37.00
95mm
15mm
5mm
GP36M
£37.00
95mm
15mm
6mm
GP36N
£37.00
95mm
15mm
8mm
GP36O
£37.00
95mm
19mm
1.5mm
GP37I
£37.00
95mm
19mm
2.5mm
GP37J
£37.00
95mm
19mm
3mm
GP37K
£37.00
95mm
19mm
4mm
GP37L
£37.00
95mm
19mm
5mm
GP37M
£37.00
95mm
19mm
6mm
GP37N
£37.00
95mm
19mm
8mm
GP37O
£37.00
95mm
35mm
1.5mm
GP38I
£37.00
95mm
35mm
3mm
GP38K
£37.00
95mm
35mm
6mm
GP38N
£37.00
127mm
flat
1.5mm
GP40I
£43.00
127mm
flat
2.5mm
GP40J
£43.00
127mm
flat
3mm
GP40K
£43.00
127mm
12.7mm
1.5mm
GP45I
£43.00
127mm
12.7mm
2.5mm
GP45J
£43.00
127mm
12.7mm
3mm
GP45K
£43.00
127mm
12.7mm
4mm
GP45L
£43.00
127mm
12.7mm
5mm
GP45M
£43.00
127mm
12.7mm
6mm
GP45N
£43.00
127mm
15mm
1.5mm
GP46I
£43.00
127mm
15mm
2.5mm
GP46J
£43.00
127mm
15mm
3mm
GP46K
£43.00
127mm
15mm
4mm
GP46L
£43.00
127mm
15mm
5mm
GP46M
£43.00
127mm
15mm
6mm
GP46N
£43.00
127mm
19mm
3mm
GP47K
£43.00
127mm
19mm
4mm
GP47L
£43.00
127mm
19mm
5mm
GP47M
£43.00
127mm
19mm
6mm
GP47N
£43.00
127mm
35mm
3mm
GP48K
£43.00
127mm
35mm
4mm
GP48L
£43.00
127mm
35mm
6mm
GP48N
£43.00
70mm flat 1.5mm GP20I 29.00
70mm flat 2.5mm GP20J 29.00
70mm flat 3mm GP20K 29.00
70mm flat 4mm GP20L 29.00
70mm flat 6mm GP20N 29.00
70mm flat 8mm GP20O 29.00
70mm 12.7mm 1.5mm GP25I 29.00
70mm 12.7mm 2.5mm GP25J 29.00
70mm 12.7mm 3mm GP25K 29.00
70mm 12.7mm 4mm GP25L 29.00
70mm 12.7mm 5mm GP25M 29.00
70mm 12.7mm 6mm GP25N 29.00
70mm 12.7mm 8mm GP25O 29.00
70mm 12.7mm 9.5mm GP25P 29.00
70mm 15mm 1.5mm GP26I 29.00
70mm 15mm 2.5mm GP26J 29.00
70mm 15mm 3mm GP26K 29.00
70mm 15mm 4mm GP26L 29.00
70mm 15mm 5mm GP26M 29.00
70mm 15mm 6mm GP26N 29.00
70mm 15mm 8mm GP26O 29.00
70mm 15mm 9.5mm GP26P 29.00
70mm 19mm 1.5mm GP27I 29.00
70mm 19mm 2.5mm GP27J 29.00
70mm 19mm 3mm GP27K 29.00
70mm 19mm 4mm GP27L 29.00
70mm 19mm 5mm GP27M 29.00
70mm 19mm 6mm GP27N 29.00
70mm 35mm 1.5mm GP28I 29.00
70mm 35mm 2.5mm GP28J 29.00
70mm 35mm 3mm GP28K 29.00
70mm 35mm 4mm GP28L 29.00
70mm 35mm 5mm GP28M 29.00
70mm 35mm 6mm GP28N 29.00
70mm 35mm 8mm GP28O 29.00
95mm flat 1.5mm GP30I 37.00
95mm flat 2.5mm GP30J 37.00
95mm flat 3mm GP30K 37.00
95mm flat 4mm GP30L 37.00
95mm 12.7mm 1.5mm GP35I 37.00
95mm 12.7mm 2.5mm GP35J 37.00
95mm 12.7mm 3mm GP35K 37.00
95mm 12.7mm 4mm GP35L 37.00
95mm 12.7mm 5mm GP35M 37.00
95mm 12.7mm 6mm GP35N 37.00
95mm 12.7mm 8mm GP35O 37.00
95mm 15mm 1.5mm GP36I 37.00
95mm 15mm 2.5mm GP36J 37.00
95mm 15mm 3mm GP36K 37.00
95mm 15mm 4mm GP36L 37.00
95mm 15mm 5mm GP36M 37.00
95mm 15mm 6mm GP36N 37.00
95mm 15mm 8mm GP36O 37.00
95mm 19mm 1.5mm GP37I 37.00
95mm 19mm 2.5mm GP37J 37.00
95mm 19mm 3mm GP37K 37.00
95mm 19mm 4mm GP37L 37.00
95mm 19mm 5mm GP37M 37.00
95mm 19mm 6mm GP37N 37.00
95mm 19mm 8mm GP37O 37.00
95mm 35mm 1.5mm GP38I 37.00
95mm 35mm 3mm GP38K 37.00
95mm 35mm 6mm GP38N 37.00
127mm flat 1.5mm GP40I 43.00
127mm flat 2.5mm GP40J 43.00
127mm flat 3mm GP40K 43.00
127mm 12.7mm 1.5mm GP45I 43.00
