ABS type removable nozzle tip

Original price £24.00 - Original price £24.00
Original price
£24.00
£24.00 - £24.00
Current price £24.00
Description

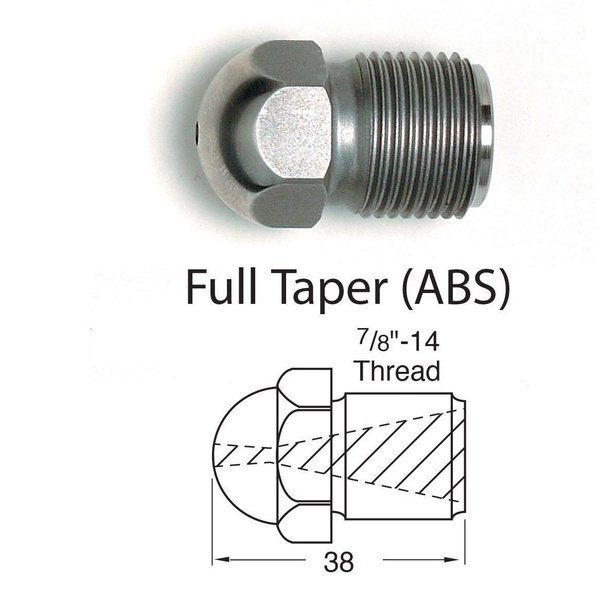

Hardened Chrome Steel ABS Nozzle tips

  • 38mm length (including thread)
  • 48/52 rc Hardened chrome vanadium tungsten tool steel
  • 7/8"-14 thread for use in all regular removable tip nozzles
  • Available with any combination or radius and orifice
  • Available in nickel copper for improved heat transfer
  • Smooth polished internal bore improves flow
  • Polished radius for improved seal with bushing

ABS full taper, provides very smooth internal flow, both in the nozzle body and continued through the tip.
Minimizes back-pressure and ensures optimum performance, even with the most viscous materials.

radius orifice Comments Part no Price £ Quantity
12.7mm 3mm Radius: 12.7mm, Orifice: 3mm ABS15K 24.00
12.7mm 4mm Radius: 12.7mm, Orifice: 4mm ABS15L 24.00
12.7mm 5mm Radius: 12.7mm, Orifice: 5mm ABS15M 24.00
12.7mm 6mm Radius: 12.7mm, Orifice: 6mm ABS15N 24.00
12.7mm 8mm Radius: 12.7mm, Orifice: 8mm ABS15O 24.00
12.7mm 9.5mm Radius: 12.7mm, Orifice: 9.5mm ABS15P 24.00
120 cone 3mm Radius: 120 cone, Orifice: 3mm ABS14K 24.00
120 cone 4mm Radius: 120 cone, Orifice: 4mm ABS14L 24.00
120 cone 6mm Radius: 120 cone, Orifice: 6mm ABS14N 24.00
15mm 3mm Radius: 15mm, Orifice: 3mm ABS16K 24.00
15mm 4mm Radius: 15mm, Orifice: 4mm ABS16L 24.00
15mm 5mm Radius: 15mm, Orifice: 5mm ABS16M 24.00
15mm 6mm Radius: 15mm, Orifice: 6mm ABS16N 24.00
15mm 8mm Radius: 15mm, Orifice: 8mm ABS16O 24.00
15mm 9.5mm Radius: 15mm, Orifice: 9.5mm ABS16P 24.00
19mm 3mm Radius: 19mm, Orifice: 3mm ABS17K 24.00
19mm 4mm Radius: 19mm, Orifice: 4mm ABS17L 24.00
19mm 5mm Radius: 19mm, Orifice: 5mm ABS17M 24.00
19mm 6mm Radius: 19mm, Orifice: 6mm ABS17N 24.00
19mm 8mm Radius: 19mm, Orifice: 8mm ABS17O 24.00
19mm 9.5mm Radius: 19mm, Orifice: 9.5mm ABS17P 24.00
35mm 3mm Radius: 35mm, Orifice: 3mm ABS18K 24.00
35mm 4mm Radius: 35mm, Orifice: 4mm ABS18L 24.00
35mm 5mm Radius: 35mm, Orifice: 5mm ABS18M 24.00
35mm 6mm Radius: 35mm, Orifice: 6mm ABS18N 24.00
35mm 8mm Radius: 35mm, Orifice: 8mm ABS18O 24.00
60 cone 3mm Radius: 60 cone, Orifice: 3mm ABS12K 24.00
90 cone 3mm Radius: 90 cone, Orifice: 3mm ABS13K 24.00
90 cone 4mm Radius: 90 cone, Orifice: 4mm ABS13L 24.00
90 cone 5mm Radius: 90 cone, Orifice: 5mm ABS13M 24.00
90 cone 6mm Radius: 90 cone, Orifice: 6mm ABS13N 24.00
flat 3mm Radius: flat, Orifice: 3mm ABS10K 24.00
flat 4mm Radius: flat, Orifice: 4mm ABS10L 24.00
flat 5mm Radius: flat, Orifice: 5mm ABS10M 24.00
flat 6mm Radius: flat, Orifice: 6mm ABS10N 24.00
flat 8mm Radius: flat, Orifice: 8mm ABS10O 24.00
flat 9.5mm Radius: flat, Orifice: 9.5mm ABS10P 24.00
radius
orifice
12.7mm
3mm
ABS15K
£24.00
12.7mm
4mm
ABS15L
£24.00
12.7mm
5mm
ABS15M
£24.00
12.7mm
6mm
ABS15N
£24.00
12.7mm
8mm
ABS15O
£24.00
12.7mm
9.5mm
ABS15P
£24.00
120 cone
3mm
ABS14K
£24.00
120 cone
4mm
ABS14L
£24.00
120 cone
6mm
ABS14N
£24.00
15mm
3mm
ABS16K
£24.00
15mm
4mm
ABS16L
£24.00
15mm
5mm
ABS16M
£24.00
15mm
6mm
ABS16N
£24.00
15mm
8mm
ABS16O
£24.00
15mm
9.5mm
ABS16P
£24.00
19mm
3mm
ABS17K
£24.00
19mm
4mm
ABS17L
£24.00
19mm
5mm
ABS17M
£24.00
19mm
6mm
ABS17N
£24.00
19mm
8mm
ABS17O
£24.00
19mm
9.5mm
ABS17P
£24.00
35mm
3mm
ABS18K
£24.00
35mm
4mm
ABS18L
£24.00
35mm
5mm
ABS18M
£24.00
35mm
6mm
ABS18N
£24.00
35mm
8mm
ABS18O
£24.00
60 cone
3mm
ABS12K
£24.00
90 cone
3mm
ABS13K
£24.00
90 cone
4mm
ABS13L
£24.00
90 cone
5mm
ABS13M
£24.00
90 cone
6mm
ABS13N
£24.00
flat
3mm
ABS10K
£24.00
flat
4mm
ABS10L
£24.00
flat
5mm
ABS10M
£24.00
flat
6mm
ABS10N
£24.00
flat
8mm
ABS10O
£24.00
flat
9.5mm
ABS10P
£24.00
12.7mm 3mm ABS15K 24.00
12.7mm 4mm ABS15L 24.00
12.7mm 5mm ABS15M 24.00
12.7mm 6mm ABS15N 24.00
12.7mm 8mm ABS15O 24.00
12.7mm 9.5mm ABS15P 24.00
120 cone 3mm ABS14K 24.00
120 cone 4mm ABS14L 24.00
120 cone 6mm ABS14N 24.00
15mm 3mm ABS16K 24.00
15mm 4mm ABS16L 24.00
15mm 5mm ABS16M 24.00
15mm 6mm ABS16N 24.00
15mm 8mm ABS16O 24.00
15mm 9.5mm ABS16P 24.00
19mm 3mm ABS17K 24.00
19mm 4mm ABS17L 24.00
19mm 5mm ABS17M 24.00
19mm 6mm ABS17N 24.00
19mm 8mm ABS17O 24.00
19mm 9.5mm ABS17P 24.00
35mm 3mm ABS18K 24.00
35mm 4mm ABS18L 24.00
35mm 5mm ABS18M 24.00
35mm 6mm ABS18N 24.00
35mm 8mm ABS18O 24.00
60 cone 3mm ABS12K 24.00
90 cone 3mm ABS13K 24.00
90 cone 4mm ABS13L 24.00
90 cone 5mm ABS13M 24.00
90 cone 6mm ABS13N 24.00
flat 3mm ABS10K 24.00
flat 4mm ABS10L 24.00
flat 5mm ABS10M 24.00
flat 6mm ABS10N 24.00
flat 8mm ABS10O 24.00
flat 9.5mm ABS10P 24.00
Additional Details
radius orifice
12.7mm 3mm
12.7mm 4mm
12.7mm 5mm
12.7mm 6mm
12.7mm 8mm
12.7mm 9.5mm
120 cone 3mm
120 cone 4mm
120 cone 6mm
15mm 3mm
15mm 4mm
15mm 5mm
15mm 6mm
15mm 8mm
15mm 9.5mm
19mm 3mm
19mm 4mm
19mm 5mm
19mm 6mm
19mm 8mm
19mm 9.5mm
35mm 3mm
35mm 4mm
35mm 5mm
35mm 6mm
35mm 8mm
60 cone 3mm
90 cone 3mm
90 cone 4mm
90 cone 5mm
90 cone 6mm
flat 3mm
flat 4mm
flat 5mm
flat 6mm
flat 8mm
flat 9.5mm
