Nozzle Body - Oima Removable Tip Nozzles

Oima Removable Tip Nozzles

£134.38 - £216.08
£134.38
£134.38 - £216.08
£134.38
Description

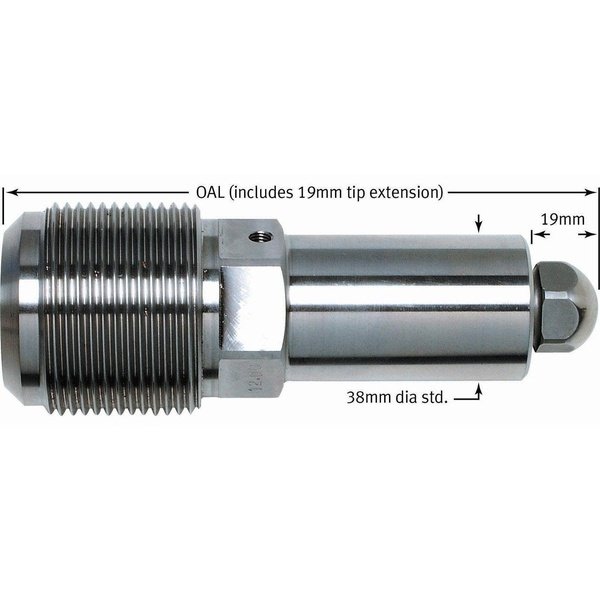

Oima Nozzle Body

Nozzle body with thread to suit your machine. 11/2" body diameter accepts standard heater bands and 7/8"-14 female thread at front to accept removable nozzle tips. Pre heat-treated steel machined to suit the thread of your machine and accept standard low-cost replacement tips.

Any size or specification made to your requirements. Simply find your machine thread below for part number:
To order special nozzles, or sizes not shown above, click here or please call sales office 01536 206653

Thread R/O Part No Machine Model
42x3 30mm OB 3300/360SX
65x3 45mm OF
65x3 50mm OG
Part Number Length (mm) Comments Part no Price £ Quantity
OB 125 OB5 134.38
OB 150 OB6 146.20
OB 175 OB7 155.88
OB 200 OB8 177.38
OF 150 OF6 185.98
OG 150 OG6 185.98
OG 200 OG8 216.08
Part Number
Length (mm)
OB
125
OB5
£134.38
OB
150
OB6
£146.20
OB
175
OB7
£155.88
OB
200
OB8
£177.38
OF
150
OF6
£185.98
OG
150
OG6
£185.98
OG
200
OG8
£216.08
OB 125 OB5 134.38
OB 150 OB6 146.20
OB 175 OB7 155.88
OB 200 OB8 177.38
OF 150 OF6 185.98
OG 150 OG6 185.98
OG 200 OG8 216.08
Additional Details
Part Number Length (mm)
OB 125
OB 150
OB 175
OB 200
OF 150
OG 150
OG 200
