Nozzle Band - Mineral Insulated Nozzle Bands

Mineral Insulated Nozzle Bands

£108.98 - £238.00
£108.98
£108.98 - £238.00
£108.98
Description

Mineral Insulated High Temperature Nozzle Bands

  • High watt density, up to 760C
  • Ideal for high temperature plastics.

Precision manufacturing tolerance allows use to very high temperatures and high Watt Density. Melt temperatures up to 760C as required by newer engineering resins are routine for the mineral insulated nozzle band.

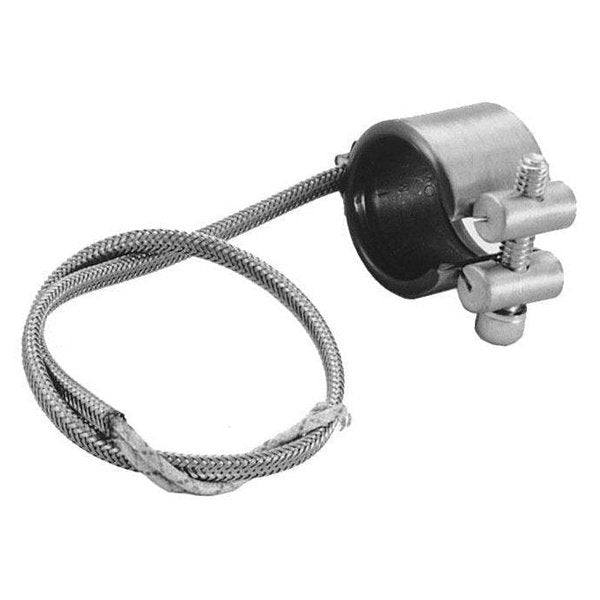

Aluminium oxide insulation is efficient but slim profile and the stainless steel cover forms a rugged barrier to shock, vibration and drool. Lead wires exit in a single metal braid for flexibility, convenience and protection. Exit is opposite clamp at edge of heater. Bands with post terminals have strong welded connections to internal wiring.

Standard Stainless braided leads are 300 mm. Note bands with post terminals

diameter length leads Comments Part no Price £ Quantity
25 38 12" Stainless 25D x 38L, 1 X 1 1/2 300W 300mm leads MI1015B2 108.98
38 25 12" Stainless 38D x 25L, 1 1/2 X 1 300W 300mm leads MI1510B2 112.00
38 38 12" Stainless 38D x 38L, 1 1/2 X 1 1/2 450W 300mm leads MI1515B2 135.00

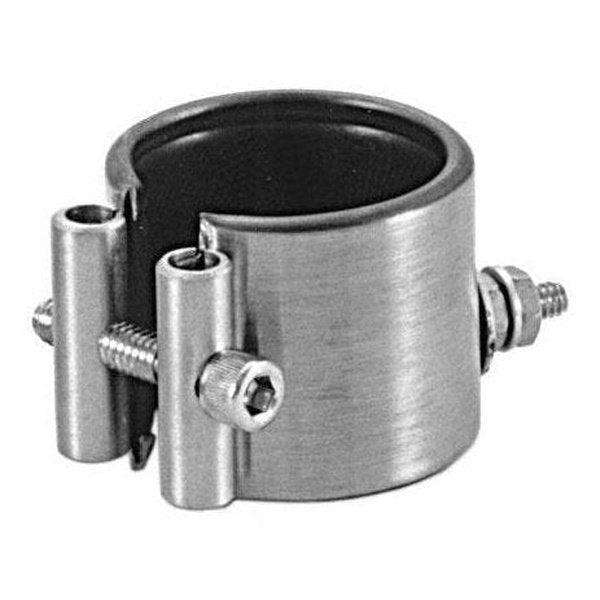

38 38 Post Terminals 38D x 38L, 450W POST TERMINALS MI1515P2 135.00
38 50 12" Stainless 38D x 50L, 1 1/2 X 2 450W 300mm leads MI1520B2 156.00
45 25 Post Terminals 450W POST TERMINALS MI1710P2 198.00
50 25 12" Stainless 50D x 25L, 2 X 1 350W 300mm leads MI2010B2 204.00
50 50 12" Stainless 50D x 50L, 2 X 2 750W 300mm leads MI2020B2 224.00
57 50 12" Stainless 57D x 50L, 2 1/4 X 2 1/2 1000W 300mm leads MI2225B2 228.00
75 38 Post Terminals 75D x 38L, 3 X 1 1/2 500W Post terminal MI3015P2 124.00
114 64 Post Terminals 1250W POST TERMINALS MI4525P2 238.00
diameter
length
leads
25
38
12" Stainless
MI1015B2
£108.98
38
25
12" Stainless
MI1510B2
£112.00
38
38
12" Stainless
MI1515B2
£135.00
38
38
Post Terminals
MI1515P2
£135.00
38
50
12" Stainless
MI1520B2
£156.00
45
25
Post Terminals
MI1710P2
£198.00
50
25
12" Stainless
MI2010B2
£204.00
50
50
12" Stainless
MI2020B2
£224.00
57
50
12" Stainless
MI2225B2
£228.00
75
38
Post Terminals
MI3015P2
£124.00
114
64
Post Terminals
MI4525P2
£238.00
25 38 12" Stainless MI1015B2 108.98
38 25 12" Stainless MI1510B2 112.00
38 38 12" Stainless MI1515B2 135.00
38 38 Post Terminals MI1515P2 135.00
38 50 12" Stainless MI1520B2 156.00
45 25 Post Terminals MI1710P2 198.00
50 25 12" Stainless MI2010B2 204.00
50 50 12" Stainless MI2020B2 224.00
57 50 12" Stainless MI2225B2 228.00
75 38 Post Terminals MI3015P2 124.00
114 64 Post Terminals MI4525P2 238.00
