Water Manifold - Stainless Steel Stacked

Original price £168.00 - Original price £450.00
Original price
£168.00
£168.00 - £450.00
Current price £168.00
Description

High Quality Stainless Steel Manifolds

  • Welded Stainless Steel, Pressure tested
  • Compact mounting
  • 2 styles available: Straight or Stacked

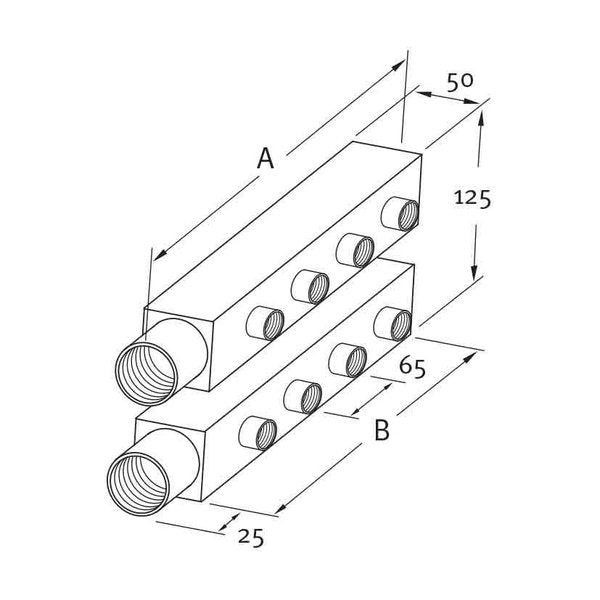

  • 2" x 2" stainless steel box section
  • 3/4", 1" or 1 1/4" BSP Inlet main supply
  • 1/4", 3/8" or 1/2" BSP Outlet mould supply ports (65mm between centres)
ports inlet port Comments Part no Price £ Quantity
4 3/4" 1/4" STM724S 168.00
4 1" 1/4" STM1024S 168.00
4 1" 3/8" STM1034S 178.00
8 3/4" 1/4" STM728S 214.00
8 3/4" 3/8" STM738S 224.00
8 1" 1/4" STM1028S 248.00
8 1" 3/8" STM1038S 258.00
8 1" 1/2" STM1058S 268.00
8 1 1/4" 3/8" STM1238S 278.00
8 1 1/4" 1/2" STM1258S 288.00
12 3/4" 1/4" STM7212S 320.00
12 1" 1/4" STM10212S 330.00
12 1" 3/8" STM10312S 340.00
12 1 1/4" 3/8" STM12312S 350.00
16 3/4" 1/4" STM7216S 394.00
16 1" 1/4" STM10216S 420.00
16 1" 3/8" STM10316S 430.00
16 1 1/4" 3/8" STM12316S 440.00
16 1 1/4" 1/2" STM12516S 450.00
ports
inlet
port
4
3/4"
1/4"
STM724S
£168.00
4
1"
1/4"
STM1024S
£168.00
4
1"
3/8"
STM1034S
£178.00
8
3/4"
1/4"
STM728S
£214.00
8
3/4"
3/8"
STM738S
£224.00
8
1"
1/4"
STM1028S
£248.00
8
1"
3/8"
STM1038S
£258.00
8
1"
1/2"
STM1058S
£268.00
8
1 1/4"
3/8"
STM1238S
£278.00
8
1 1/4"
1/2"
STM1258S
£288.00
12
3/4"
1/4"
STM7212S
£320.00
12
1"
1/4"
STM10212S
£330.00
12
1"
3/8"
STM10312S
£340.00
12
1 1/4"
3/8"
STM12312S
£350.00
16
3/4"
1/4"
STM7216S
£394.00
16
1"
1/4"
STM10216S
£420.00
16
1"
3/8"
STM10316S
£430.00
16
1 1/4"
3/8"
STM12316S
£440.00
16
1 1/4"
1/2"
STM12516S
£450.00
4 3/4" 1/4" STM724S 168.00
4 1" 1/4" STM1024S 168.00
4 1" 3/8" STM1034S 178.00
8 3/4" 1/4" STM728S 214.00
8 3/4" 3/8" STM738S 224.00
8 1" 1/4" STM1028S 248.00
8 1" 3/8" STM1038S 258.00
8 1" 1/2" STM1058S 268.00
8 1 1/4" 3/8" STM1238S 278.00
8 1 1/4" 1/2" STM1258S 288.00
12 3/4" 1/4" STM7212S 320.00
12 1" 1/4" STM10212S 330.00
12 1" 3/8" STM10312S 340.00
12 1 1/4" 3/8" STM12312S 350.00
16 3/4" 1/4" STM7216S 394.00
16 1" 1/4" STM10216S 420.00
16 1" 3/8" STM10316S 430.00
16 1 1/4" 3/8" STM12316S 440.00
16 1 1/4" 1/2" STM12516S 450.00
Additional Details
ports inlet port
4 3/4" 1/4"
4 1" 1/4"
4 1" 3/8"
8 3/4" 1/4"
8 3/4" 3/8"
8 1" 1/4"
8 1" 3/8"
8 1" 1/2"
8 1 1/4" 3/8"
8 1 1/4" 1/2"
12 3/4" 1/4"
12 1" 1/4"
12 1" 3/8"
12 1 1/4" 3/8"
16 3/4" 1/4"
16 1" 1/4"
16 1" 3/8"
16 1 1/4" 3/8"
16 1 1/4" 1/2"
