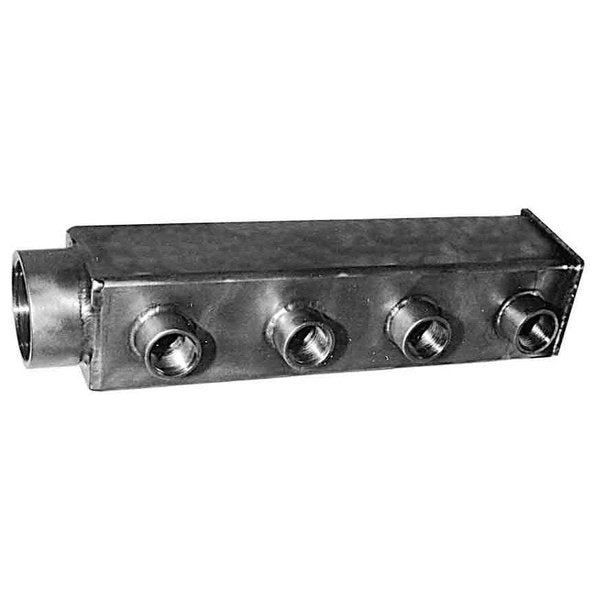

Water Manifold - Stainless Straight
Original price
£120.00
-
Original price
£245.00
Original price
£120.00
£120.00
-
£245.00
Current price
£120.00
Description
High Quality Stainless Steel Manifolds
- Welded Stainless Steel, Pressure tested
- Compact mounting
- 2 styles available: Straight or Stacked

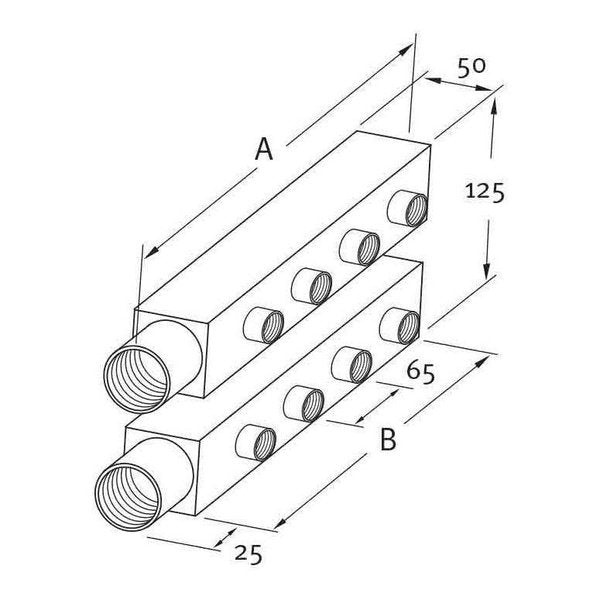

- 2" x 2" stainless steel box section
- 3/4", 1" or 1 1/4" BSP Inlet main supply
- 1/4", 3/8" or 1/2" BSP Outlet mould supply ports (65mm between centres)
Additional Details
| ports | inlet | port |
|---|---|---|
| 4 | 3/4" | 1/4" |
| 4 | 3/4" | 3/8" |
| 4 | 1" | 1/4" |
| 4 | 1" | 3/8" |
| 4 | 1" | 1/2" |
| 4 | 1 1/2" | 3/8" |
| 4 | 1 1/4" | 3/8" |
| 4 | 1 1/4" | 1/2" |
| 6 | 3/4" | 3/8" |
| 6 | 1" | 1/4" |
| 6 | 1" | 3/8" |
| 6 | 1 1/4" | 3/8" |
| 6 | 1 1/4" | 1/2" |
| 8 | 3/4" | 1/4" |
| 8 | 1" | 3/8" |
| 8 | 1 1/4" | 3/8" |
| 8 | 1 1/4" | 1/2" |
| 8 | 1 1/2" | 1/2" |
