Hopper Magnets Square

Original price £37.00 - Original price £245.00
Original price
£37.00
£37.00 - £245.00
Current price £37.00
Description

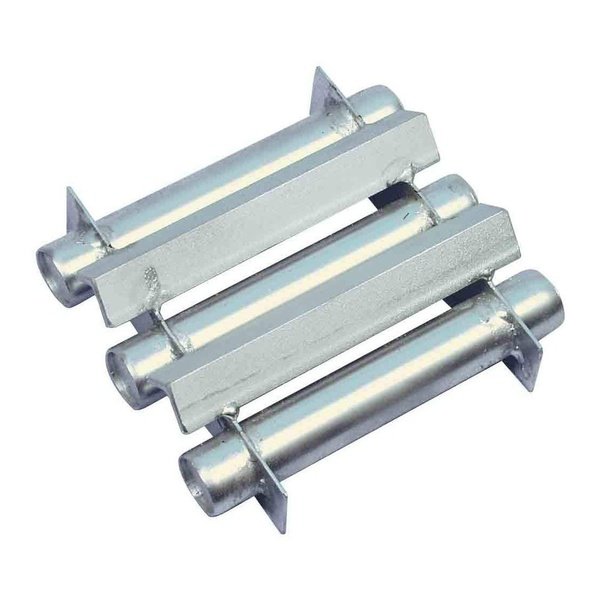

Hopper Magnets Square

  • Stainless Steel construction
  • Exceptionally well made for long life
  • 90 degree angle diverter bars to improve contaminant trap
  • Quality and strength
  • Made in our own factory
  • Gauss 1500 open Circuit

These ceramic magnets are encased in a stainless steel sheath in order to protect the delicate ceramic elements. This also prolongs the life of the magnet itself. All magnets are fitted with diverter bars in order to concentrate the flow of material and contaminant directly next to the magnet bars which improves effectiveness.

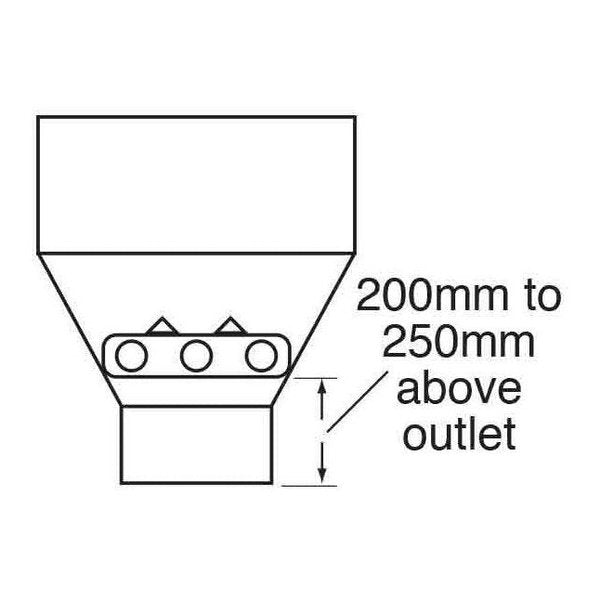

Hopper Magnet should have at least twice the cross-sectional area of machine feed throat opening.

square Comments Part no Price £ Quantity
100mm CHM10 37.00
150mm CHM15 62.10
200mm CHM20 100.00
250mm CHM25 157.00
300mm CHM30 215.00
350mm CHM35 245.00
square
100mm
CHM10
£37.00
150mm
CHM15
£62.10
200mm
CHM20
£100.00
250mm
CHM25
£157.00
300mm
CHM30
£215.00
350mm
CHM35
£245.00
100mm CHM10 37.00
150mm CHM15 62.10
200mm CHM20 100.00
250mm CHM25 157.00
300mm CHM30 215.00
350mm CHM35 245.00
