Lifting Sling

Original price £11.00 - Original price £24.70
Original price
£11.00
£11.00 - £24.70
Current price £11.00
Description

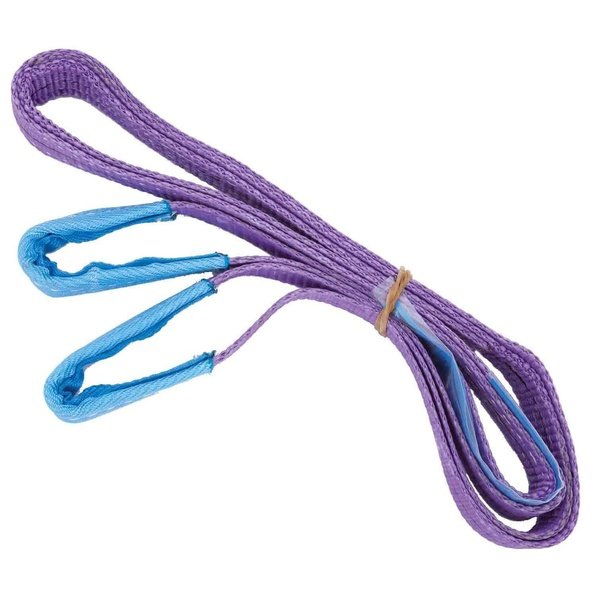

Lifting Slings

Tough lifting slings for mould and shop handling

  • High strength to weight ratio.
  • Use to 180C.

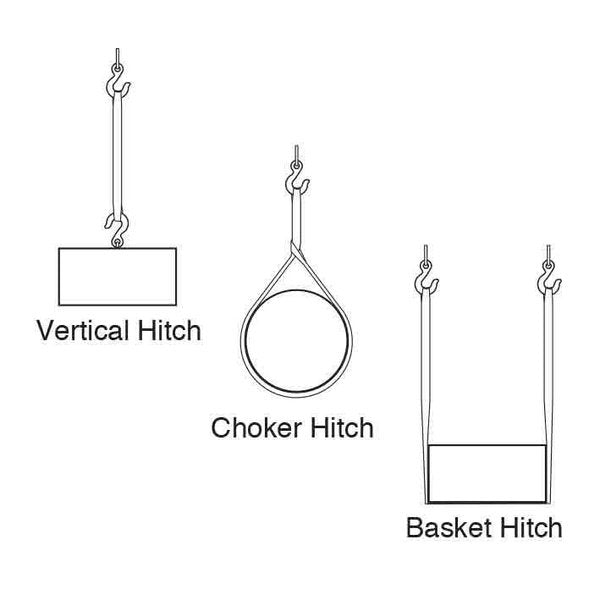

  • Wide choice of lifting modes
  • Conforms to BS EN1492-1
  • Safety factor 7:1

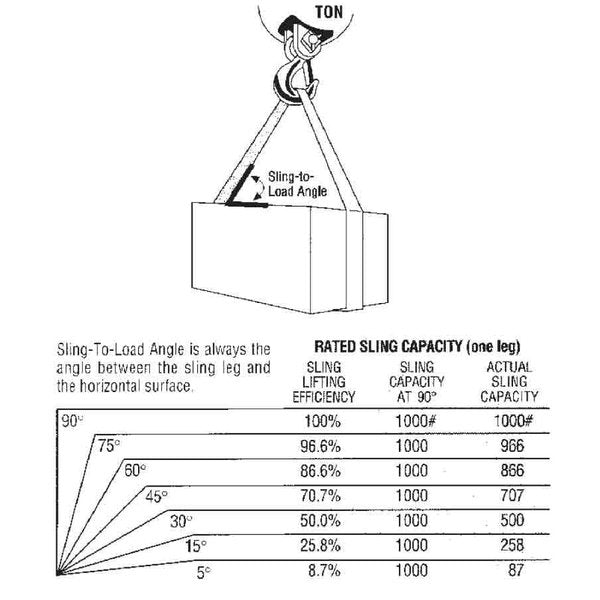

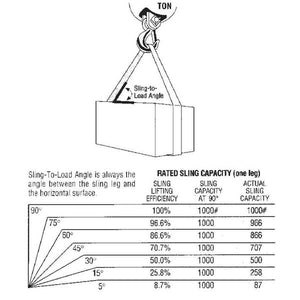

Effect of Angle on a Sling's Rated Capacity

When slings are used at an angle (i.e. two slings or one sling in a basket attached to only one crane hook), sling capacity is reduced. How much it is reduced depends on the degree of the angle. You can determine whether a sling will be rated high enough if you know the angle between the sling leg and the horizontal. Once you know this angle, multiply the sling's rating by the appropriate factor in the table. This will give you the sling's reduced rating.

width length Comments Part no Price £ Quantity
50mm 1 metre Rating (Ton): Vertical=1, Choker=0.8, Basket=2 EE2-801 11.00
30mm 1.5metre Rating (Ton): Vertical=1, Choker=0.8, Basket=2 EE2-801-4 21.00
50mm 2 metres Rating (Ton): Vertical=1, Choker=0.8, Basket=2 EE2-801-6 14.40
50mm 3 metres Rating (Ton): Vertical=1, Choker=0.8, Basket=2 EE2-801-8 16.80
60mm 1 metre Rating (ton): Vertical=2, Choker=1.6, Basket=4 EE2-802 13.80
60mm 2 metres Rating (ton): Vertical=2, Choker=1.6, Basket=4 EE2-802-6 20.80
60mm 3 metres Rating (ton): Vertical=2, Choker=1.6, Basket=4 EE2-802-8 24.70
width
length
50mm
1 metre
EE2-801
£11.00
30mm
1.5metre
EE2-801-4
£21.00
50mm
2 metres
EE2-801-6
£14.40
50mm
3 metres
EE2-801-8
£16.80
60mm
1 metre
EE2-802
£13.80
60mm
2 metres
EE2-802-6
£20.80
60mm
3 metres
EE2-802-8
£24.70
50mm 1 metre EE2-801 11.00
30mm 1.5metre EE2-801-4 21.00
50mm 2 metres EE2-801-6 14.40
50mm 3 metres EE2-801-8 16.80
60mm 1 metre EE2-802 13.80
60mm 2 metres EE2-802-6 20.80
60mm 3 metres EE2-802-8 24.70
Additional Details
width length
50mm 1 metre
30mm 1.5metre
50mm 2 metres
50mm 3 metres
60mm 1 metre
60mm 2 metres
60mm 3 metres
