Lenzke Clamp MQ70 (to 50kN)

Original price £152.50 - Original price £999.00
Original price
£152.50
£152.50 - £999.00
Current price £152.50
Description

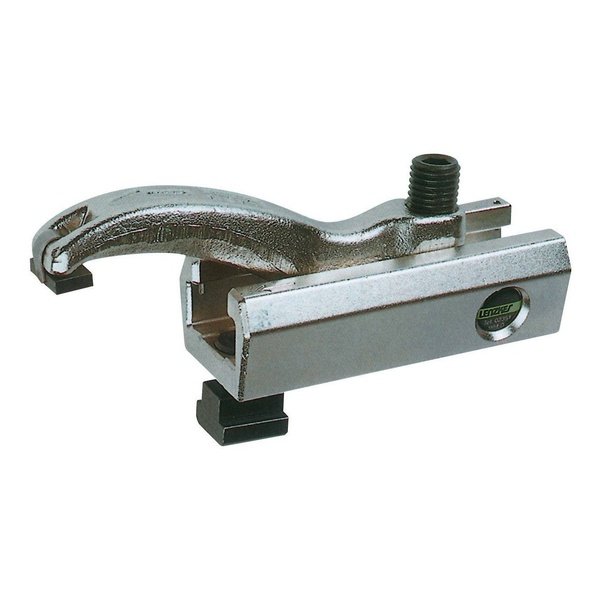

Lenzke Clamp MQ70 (to 50kN)

  • Patented stepless adjustment
  • Strong Clamping pressure for small clamping torque
  • Flexible and adjustable at every angle to the T slot
  • Reduction of set-up time through reliable, fast and safe clamping
  • Vertically highly adjustable through triple clamping shoe
  • Widely adjustable clamping heights through stackable clamping shoe

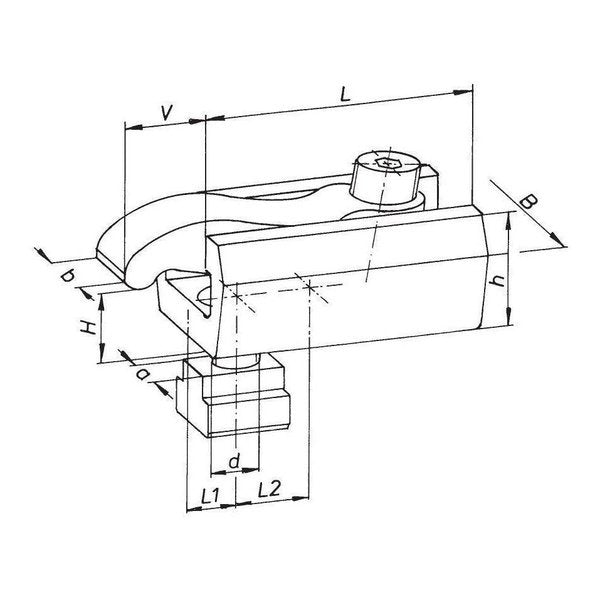

Thread Slot a H Comments Part no Price £ Quantity
M12 14 5-52mm V=65, L=95, L1=12, L2=-, B=52, b=24, h=37, kN=20 070-052-1214 152.50
M12 14 7-72mm V=95, L=135, L1=12, L2=24, B=52, b=24, h=37, kN=22 070-072-1214 999.00
M16 18 6-62mm V=75, L=110, L1=15, L2=-, B=60, b=28, h=42, kN=30 070-062-1618 999.00
M16 18 8-82mm V=108, L=155, L1=15, L2=28, B=60, b=28, h=42, kN=32 070-082-1618 198.66
M20 22 7-75mm V=90, L=125, L1=19, L2=-, B=75, b=34, h=48, kN=40 070-075-2022 999.00
M20 22 7-92mm V=122, L=175, L1=19, L2=34, B=75, b=34, h=48, kN=42 070-092-2022 999.00
M24 28 8-90mm V=112, L=150, L1=22, L2=-, B=88, b=42, h=57, kN=50 070-090-2428 999.00
M24 28 8-108mm V=145, L=205, L1=22, L2=38, B=88, b=42, h=57, kN=50 070-108-2428 999.00
M30 36 8-90mm V=115, L=150, L1=25, L2=-, B=88, b=42, h=57, kN=50 070-090-3036 999.00
M30 36 8-108mm V=148, L=205, L1=25, L2=-, B=88, b=42, h=57, kN=50 070-108-3036 999.00
Thread
Slot a
H
M12
14
5-52mm
070-052-1214
£152.50
M12
14
7-72mm
070-072-1214
£999.00
M16
18
6-62mm
070-062-1618
£999.00
M16
18
8-82mm
070-082-1618
£198.66
M20
22
7-75mm
070-075-2022
£999.00
M20
22
7-92mm
070-092-2022
£999.00
M24
28
8-90mm
070-090-2428
£999.00
M24
28
8-108mm
070-108-2428
£999.00
M30
36
8-90mm
070-090-3036
£999.00
M30
36
8-108mm
070-108-3036
£999.00
M12 14 5-52mm 070-052-1214 152.50
M12 14 7-72mm 070-072-1214 999.00
M16 18 6-62mm 070-062-1618 999.00
M16 18 8-82mm 070-082-1618 198.66
M20 22 7-75mm 070-075-2022 999.00
M20 22 7-92mm 070-092-2022 999.00
M24 28 8-90mm 070-090-2428 999.00
M24 28 8-108mm 070-108-2428 999.00
M30 36 8-90mm 070-090-3036 999.00
M30 36 8-108mm 070-108-3036 999.00
Additional Details
Thread Slot a H
M12 14 5-52mm
M12 14 7-72mm
M16 18 6-62mm
M16 18 8-82mm
M20 22 7-75mm
M20 22 7-92mm
M24 28 8-90mm
M24 28 8-108mm
M30 36 8-90mm
M30 36 8-108mm
