Imperial Cartridge Heaters with Thermocouple

Imperial Cartridge Heaters with Thermocouple

£21.68 - £42.00
£24.17
£21.68 - £42.00
£24.17
Description

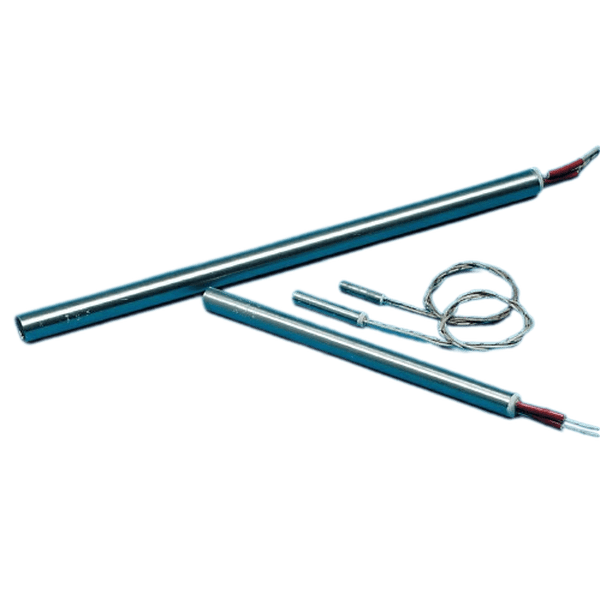

Imperial Cartridge Heaters with thermocouple

  • Includes Type J Thermocouple
  • Smooth O.D. reduces hot spots and premature burn-out
  • High watt density
  • Premium quality insulation
  • Long life
  • With standard 300mm leads
  • 240V

Click on this link for other configurations and specials

Diameter length inch watts Comments Part no Price £ Quantity
1/4" 1.5 175 1/4 X 1 1/2 175W with T/C H15150T 24.17
1/4" 2 200 1/4in X 2 Inch 200w With T/C H20200T 27.99
1/4" 3 300 1/4in X 3 Inch 300w With T/C H30300T 29.24
1/4" 2.5 250 1/4" x 21/2" 250W 230V H25250T 36.58
3/8" 2.5 250 3/8 X 2 1/2" Inch 250w with T/C J25250T 21.68
3/8" 3 200 3/8 X 3 Inch 200w With T/C J30200T 27.00
3/8" 3 250 3/8 X 3 Inch 250w With T/C J30250T 27.00
3/8" 5 300 3/8 X 5 Inch 300w With T/C J50300T 27.00
3/8" 5 400 3/8 X 5 Inch 400w With T/C J50400T 35.00
5/8" 4 750 5/8 X 4 Inch 750w With T/C L40750T 38.00
5/8" 7 1000 5/8 X 7 Inch 1000w With T/C L701000T 42.00
5/8" 10 1000 5/8 X 10 Inch 1000w With T/C L101000T 42.00
Diameter
length inch
watts
1/4"
1.5
175
H15150T
£24.17
1/4"
2
200
H20200T
£27.99
1/4"
3
300
H30300T
£29.24
1/4"
2.5
250
H25250T
£36.58
3/8"
2.5
250
J25250T
£21.68
3/8"
3
200
J30200T
£27.00
3/8"
3
250
J30250T
£27.00
3/8"
5
300
J50300T
£27.00
3/8"
5
400
J50400T
£35.00
5/8"
4
750
L40750T
£38.00
5/8"
7
1000
L701000T
£42.00
5/8"
10
1000
L101000T
£42.00
1/4" 1.5 175 H15150T 24.17
1/4" 2 200 H20200T 27.99
1/4" 3 300 H30300T 29.24
1/4" 2.5 250 H25250T 36.58
3/8" 2.5 250 J25250T 21.68
3/8" 3 200 J30200T 27.00
3/8" 3 250 J30250T 27.00
3/8" 5 300 J50300T 27.00
3/8" 5 400 J50400T 35.00
5/8" 4 750 L40750T 38.00
5/8" 7 1000 L701000T 42.00
5/8" 10 1000 L101000T 42.00
Additional Details
Diameter length inch watts
1/4" 1.5 175
1/4" 2 200
1/4" 3 300
1/4" 2.5 250
3/8" 2.5 250
3/8" 3 200
3/8" 3 250
3/8" 5 300
3/8" 5 400
5/8" 4 750
5/8" 7 1000
5/8" 10 1000
