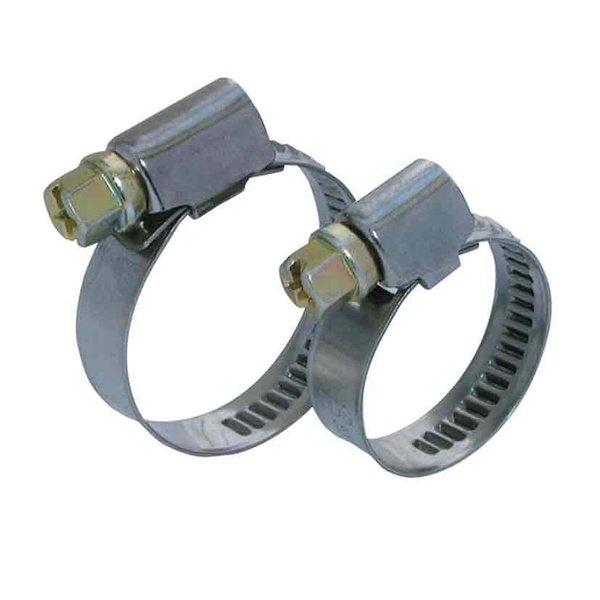

Hose Clamp 9mm or 12mm Width

Original price £0.38 - Original price £1.23
Original price
£0.38
£0.38 - £1.23
Current price £0.38
Description

Materials/Construction:

  • Band and Housing: AISI 304 Stainless Steel.
  • Screw: Yellow chromed Carbon Steel.
Band 9mm 12mm
Width W 9 12
Thickness T 0.6 0.7
Width B 12 16
Height H 11 11
A/F (SW) 7 7
hose OD band width Comments Part no Price £ Quantity
16(5/8") 9mm HC8-16 0.38
20 (3/4") 9mm HC12-20 0.39
25 (1") 9mm HC16-25 0.40
32 (1 1/4") 9mm HC20-32 0.45
40 (1 5/8") 9mm HC25-40 0.45
50 (2") 9mm HC32-50 0.45
60 (2 3/8") 9mm HC40-60 0.50
70 (2 3/4") 9mm HC50-70 0.55
80 (3 1/8") 12mm HC60-80 0.95
90 (3 1/2") 12mm HC70-90 1.00
100 (4") 12mm HC80-100 1.05
110 (4 3/8") 12mm HC90-110 0.93
120 (4 3/4") 12mm HC100-120 0.93
130 (5 1/8") 12mm HC110-130 0.97
140 (5 1/2") 12mm HC120-140 1.00
150 (5 7/8") 12mm HC130-150 0.87
160 (6 1/4") 12mm HC140-160 1.23
hose OD
band width
16(5/8")
9mm
HC8-16
£0.38
20 (3/4")
9mm
HC12-20
£0.39
25 (1")
9mm
HC16-25
£0.40
32 (1 1/4")
9mm
HC20-32
£0.45
40 (1 5/8")
9mm
HC25-40
£0.45
50 (2")
9mm
HC32-50
£0.45
60 (2 3/8")
9mm
HC40-60
£0.50
70 (2 3/4")
9mm
HC50-70
£0.55
80 (3 1/8")
12mm
HC60-80
£0.95
90 (3 1/2")
12mm
HC70-90
£1.00
100 (4")
12mm
HC80-100
£1.05
110 (4 3/8")
12mm
HC90-110
£0.93
120 (4 3/4")
12mm
HC100-120
£0.93
130 (5 1/8")
12mm
HC110-130
£0.97
140 (5 1/2")
12mm
HC120-140
£1.00
150 (5 7/8")
12mm
HC130-150
£0.87
160 (6 1/4")
12mm
HC140-160
£1.23
16(5/8") 9mm HC8-16 0.38
20 (3/4") 9mm HC12-20 0.39
25 (1") 9mm HC16-25 0.40
32 (1 1/4") 9mm HC20-32 0.45
40 (1 5/8") 9mm HC25-40 0.45
50 (2") 9mm HC32-50 0.45
60 (2 3/8") 9mm HC40-60 0.50
70 (2 3/4") 9mm HC50-70 0.55
80 (3 1/8") 12mm HC60-80 0.95
90 (3 1/2") 12mm HC70-90 1.00
100 (4") 12mm HC80-100 1.05
110 (4 3/8") 12mm HC90-110 0.93
120 (4 3/4") 12mm HC100-120 0.93
130 (5 1/8") 12mm HC110-130 0.97
140 (5 1/2") 12mm HC120-140 1.00
150 (5 7/8") 12mm HC130-150 0.87
160 (6 1/4") 12mm HC140-160 1.23
Additional Details
hose OD band width
16(5/8") 9mm
20 (3/4") 9mm
25 (1") 9mm
32 (1 1/4") 9mm
40 (1 5/8") 9mm
50 (2") 9mm
60 (2 3/8") 9mm
70 (2 3/4") 9mm
80 (3 1/8") 12mm
90 (3 1/2") 12mm
100 (4") 12mm
110 (4 3/8") 12mm
120 (4 3/4") 12mm
130 (5 1/8") 12mm
140 (5 1/2") 12mm
150 (5 7/8") 12mm
160 (6 1/4") 12mm
