Nozzle Body - Engel Removable Tip Nozzles

Engel Removable Tip Nozzles

£123.63 - £296.70
£155.88
£123.63 - £296.70
£155.88
Description

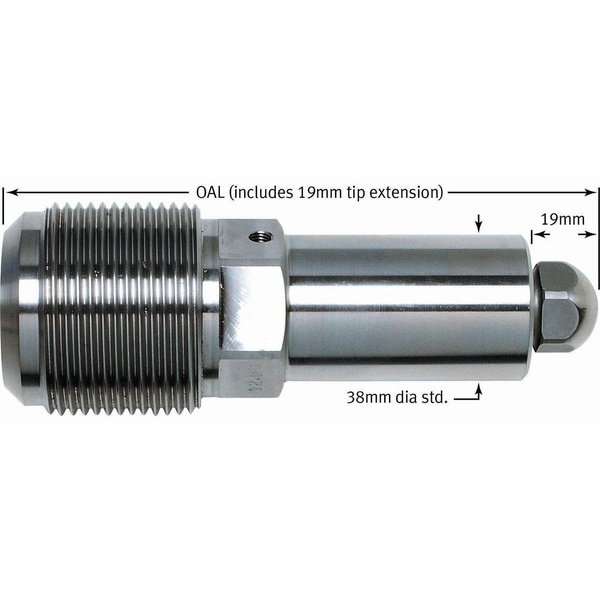

Engel Nozzle Body

Nozzle body with thread to suit your machine. 11/2" body diameter accepts standard heater bands and 7/8"-14 female thread at front to accept removable nozzle tips. Pre heat-treated steel machined to suit the thread of your machine and accept standard low-cost replacement tips.

Any size or specification made to your requirements. Simply find your machine thread below for part number:
To order special nozzles, or sizes not shown above, click here or please call sales office 01536 206653

Thread Rear Opening Part No Machine Model
7/8Unf 1/2" EOD
28x1.5 1/2" EU 200/50 450/150 150/40
30x2 10mm EOO
1 1/4"-10 18mm EOE
32x2.5 20mm E
35x2 16mm EB ES50
36x1.5 22mm EN 40/17
40x2 24mm EJ 100T ES300 100
45x3 19mm EE

WS1300 200-250 650-1050 740-940 1340 1350
45x3 20mm ED 90
45x3 32mm EO 350/150
45x3 34mm EOG
1 3/4"-8 3/4" PMS
55x3 35mm EX ES2000/350N
64x2 42mm EZ 650T
64x4 42mm EOQ ES4550/700
Part Number Length (mm) Comments Part no Price £ Quantity
EOE 175 1 1/4"-10 18mm R/O EOE7 155.88
PMS 125 1 3/4"-8 3/4" R/O PMS5 134.38
PMS 150 1 3/4"-8 3/4" R/O PMS6 146.20
PMS 175 1 3/4"-8 3/4" R/O PMS7 155.88
PMS 200 1 3/4"-8 3/4" R/O PMS8 177.38
PMS 225 1 3/4"-8 3/4" R/O PMS9 193.50
PMS 250 1 3/4"-8 3/4" R/O PMS10 221.45
PMS 300 1 3/4"-8 3/4" R/O PMS12 263.38
EU 95 28x1.5 1/2" R/O EU3 123.63
EU 125 28x1.5 1/2" R/O EU5 134.38
EU 150 28x1.5 1/2" R/O EU6 146.20
EU 175 28x1.5 1/2" R/O EU7 155.88
EU 200 28x1.5 1/2" R/O EU8 177.38
EU 225 28x1.5 1/2" R/O EU9 193.50
EU 250 28x1.5 1/2" R/O EU10 221.45
EU 300 28x1.5 1/2" R/O EU12 263.38
EOO 95 30x2 10mm R/O EOO3 123.63
EOO 125 30x2 10mm R/O EOO5 134.38
ET 125 32x2.5 20mm R/O ET5 134.38
EB 150 35x2 16mm R/O EB6 146.20
EN 150 36x1.5 22mm R/O EN6 146.20
EN 175 36x1.5 22mm R/O EN7 155.88
EJ 95 40x2 24mm R/O EJ3 123.63
EJ 125 40x2 24mm R/O EJ5 134.38
EE 95 45x3 19mm R/O EE3 123.63
EE 125 45x3 19mm R/O EE5 134.38
EE 150 45x3 19mm R/O EE6 146.20
EE 175 45x3 19mm R/O EE7 155.88
EE 200 45x3 19mm R/O EE8 177.38
EE 225 45x3 19mm R/O EE9 193.50
EE 250 45x3 19mm R/O EE10 221.45
EE 300 45x3 19mm R/O EE12 263.38
ED 95 45x3 20mm R/O ED3 123.63
ED 125 45x3 20mm R/O ED5 134.38
ED 150 45x3 20mm R/O ED6 146.20
ED 175 45x3 20mm R/O ED7 155.88
EO 95 45x3 32mm R/O EO3 123.63
EO 125 45x3 32mm R/O EO5 134.38
EO 150 45x3 32mm R/O EO6 146.20
EOG 125 45x3 34mm R/O EOG5 134.38
EX 125 55x3 35mm R/O EX5 166.63
EX 150 55x3 35mm R/O EX6 185.98
EX 175 55x3 35mm R/O EX7 193.50
EX 200 55x3 35mm R/O EX8 216.08
EX 225 55x3 35mm R/O EX9 231.13
EX 250 55x3 35mm R/O EX10 259.08
EX 300 55x3 35mm R/O EX12 296.70
EZ 150 64x2 42mm R/O EZ6 185.98
EZ 175 64x2 42mm R/O EZ7 193.50
EOQ 200 64x4 42mm R/O EOQ8 216.08
EOQ 250 64x4 42mm R/O EOQ10 259.08
EOD 150 7/8Unf 1/2" R/O EOD6 146.20
Part Number
Length (mm)
EOE
175
EOE7
£155.88
PMS
125
PMS5
£134.38
PMS
150
PMS6
£146.20
PMS
175
PMS7
£155.88
PMS
200
PMS8
£177.38
PMS
225
PMS9
£193.50
PMS
250
PMS10
£221.45
PMS
300
PMS12
£263.38
EU
95
EU3
£123.63
EU
125
EU5
£134.38
EU
150
EU6
£146.20
EU
175
EU7
£155.88
EU
200
EU8
£177.38
EU
225
EU9
£193.50
EU
250
EU10
£221.45
EU
300
EU12
£263.38
EOO
95
EOO3
£123.63
EOO
125
EOO5
£134.38
ET
125
ET5
£134.38
EB
150
EB6
£146.20
EN
150
EN6
£146.20
EN
175
EN7
£155.88
EJ
95
EJ3
£123.63
EJ
125
EJ5
£134.38
EE
95
EE3
£123.63
EE
125
EE5
£134.38
EE
150
EE6
£146.20
EE
175
EE7
£155.88
EE
200
EE8
£177.38
EE
225
EE9
£193.50
EE
250
EE10
£221.45
EE
300
EE12
£263.38
ED
95
ED3
£123.63
ED
125
ED5
£134.38
ED
150
ED6
£146.20
ED
175
ED7
£155.88
EO
95
EO3
£123.63
EO
125
EO5
£134.38
EO
150
EO6
£146.20
EOG
125
EOG5
£134.38
EX
125
EX5
£166.63
EX
150
EX6
£185.98
EX
175
EX7
£193.50
EX
200
EX8
£216.08
EX
225
EX9
£231.13
EX
250
EX10
£259.08
EX
300
EX12
£296.70
EZ
150
EZ6
£185.98
EZ
175
EZ7
£193.50
EOQ
200
EOQ8
£216.08
EOQ
250
EOQ10
£259.08
EOD
150
EOD6
£146.20
EOE 175 EOE7 155.88
PMS 125 PMS5 134.38
PMS 150 PMS6 146.20
PMS 175 PMS7 155.88
PMS 200 PMS8 177.38
PMS 225 PMS9 193.50
PMS 250 PMS10 221.45
PMS 300 PMS12 263.38
EU 95 EU3 123.63
EU 125 EU5 134.38
EU 150 EU6 146.20
EU 175 EU7 155.88
EU 200 EU8 177.38
EU 225 EU9 193.50
EU 250 EU10 221.45
EU 300 EU12 263.38
EOO 95 EOO3 123.63
EOO 125 EOO5 134.38
ET 125 ET5 134.38
EB 150 EB6 146.20
EN 150 EN6 146.20
EN 175 EN7 155.88
EJ 95 EJ3 123.63
EJ 125 EJ5 134.38
EE 95 EE3 123.63
EE 125 EE5 134.38
EE 150 EE6 146.20
EE 175 EE7 155.88
EE 200 EE8 177.38
EE 225 EE9 193.50
EE 250 EE10 221.45
EE 300 EE12 263.38
ED 95 ED3 123.63
ED 125 ED5 134.38
ED 150 ED6 146.20
ED 175 ED7 155.88
EO 95 EO3 123.63
EO 125 EO5 134.38
EO 150 EO6 146.20
EOG 125 EOG5 134.38
EX 125 EX5 166.63
EX 150 EX6 185.98
EX 175 EX7 193.50
EX 200 EX8 216.08
EX 225 EX9 231.13
EX 250 EX10 259.08
EX 300 EX12 296.70
EZ 150 EZ6 185.98
EZ 175 EZ7 193.50
EOQ 200 EOQ8 216.08
EOQ 250 EOQ10 259.08
EOD 150 EOD6 146.20
Additional Details
Part Number Length (mm)
EOE 175
PMS 125
PMS 150
PMS 175
PMS 200
PMS 225
PMS 250
PMS 300
EU 95
EU 125
EU 150
EU 175
EU 200
EU 225
EU 250
EU 300
EOO 95
EOO 125
ET 125
EB 150
EN 150
EN 175
EJ 95
EJ 125
EE 95
EE 125
EE 150
EE 175
EE 200
EE 225
EE 250
EE 300
ED 95
ED 125
ED 150
ED 175
EO 95
EO 125
EO 150
EOG 125
EX 125
EX 150
EX 175
EX 200
EX 225
EX 250
EX 300
EZ 150
EZ 175
EOQ 200
EOQ 250
EOD 150
