Demag Nozzle Body

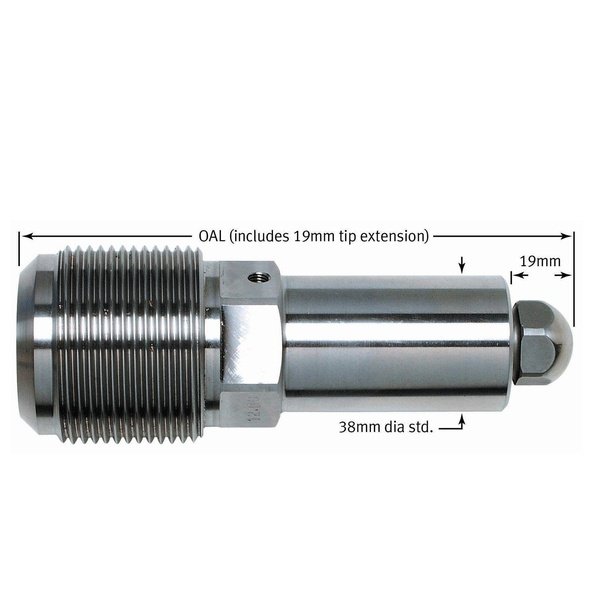

Nozzle body with thread to suit your machine. 11/2" body diameter accepts standard heater bands and 7/8"-14 female thread at front to accept removable nozzle tips. Pre heat-treated steel machined to suit the thread of your machine and accept standard low-cost replacement tips.
Any size or specification made to your requirements. Simply find your machine thread below for part number:
To order special nozzles, or sizes not shown above, click here or please call sales office 01536 206653
| Thread | R/O | Part No | Machine Model |
|---|---|---|---|
| 24x1.5 | 1/2" | DND | |
| 24x1.5 | 9mm | DKA | DK24/1.5 9mm R/O |
| 33x2 | 20mm | DL | D55 1992 |
| 40x2 | 14mm | DNJ | ET25 |
| 40x3 | 1/2" | DO | Ergotec. Available as solid tip |
| 45x3 T/L 44 | 25mm | DJ | NG111 |
| 45x3 | 30mm | DNE | |
| 48x1.5 | 25mm | DNC | New Pro |
| 60x2 | 30mm | DC | 240-165/F |
| 60x3 | 25mm | DN | ET200-840 175 D150 D210 D250 NC111 |
| 60x3 | 26mm | DZ | 150-610 |
| 60x3 | 31mm | DG | |
| 60x3 | 32mm | DM | |
| 60x3 | 40mm | DK | D360 390 NC111 |
