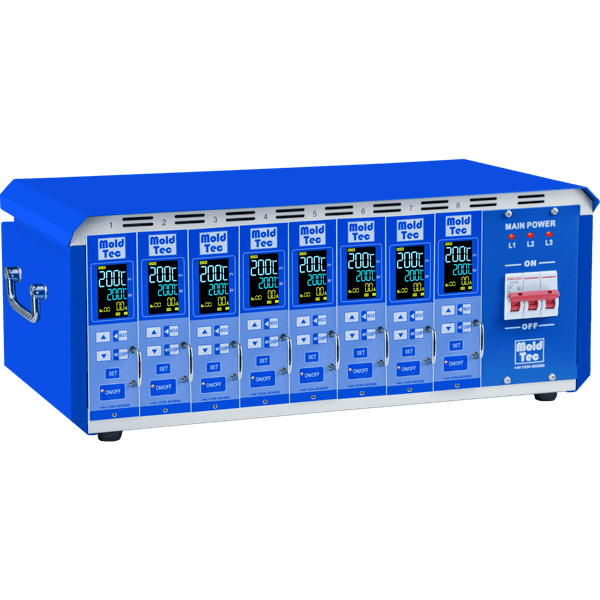

Choose either LED or LCD cards and 3 metre or 6 metre Power and Thermocouple Cables.
Use blanking plate (HRTCBP) to build mainframe with reduced number of zones and select number of cards accordingly.
| Zones | Input Power Switch | Output Connector | Cabinet Length | Mainframe | LED Display Card | LCD Display Card | 3 Metre Combination Cable | 6 Metre Combination Cable |
|---|---|---|---|---|---|---|---|---|
| 2 | 40A 240V 1ph | 2 x 5 Pin Combi Cable | 185mm | HRTC2 | HRTCB x 2 | HRTCG x 2 | MPTC1J03 x 2 | MPTC1J06 x 2 |
| 4 | 63A 415V 3ph | 16 Pin Combi Cable | 310mm | HRTC4 | HRTCB x 4 | HRTCG x 4 | MPTC4J03 x 1 | MPTC4J06 x 1 |
| 6 | 63A 415V 3ph | 24 Pin Combi Cable | 410mm | HRTC6 | HRTCB x 6 | HRTCG x 6 | MPTC6J03 x 1 | MPTC6J06 x 1 |
| 8 | 63A 415V 3ph | 2 x 16 Pin Combi Cable | 510mm | HRTC8 | HRTCB x 8 | HRTCG x 8 | MPTC4JO3 x 2 | MPTC4J06 x 2 |
| 12 | 63A 415V 3ph | 2 x 24 Pin Combi Cable | 710mm | HRTC12 | HRTCB x 12 | HRTCG x 12 | MPTC6J06 x 2 | MPTC6J06 x 2 |
