Copper Nickel Nozzle Tips

Copper Nickel Nozzle Tips

£48.40 - £55.20
£48.40
£48.40 - £55.20
£48.40
Description

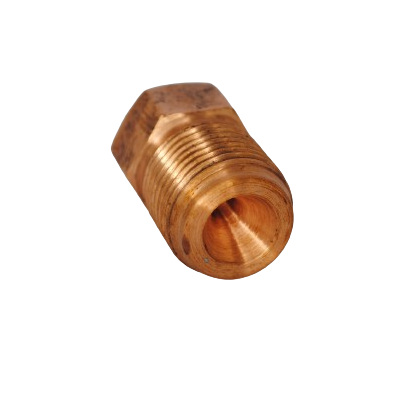

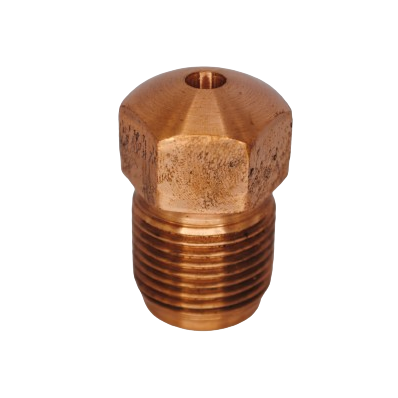

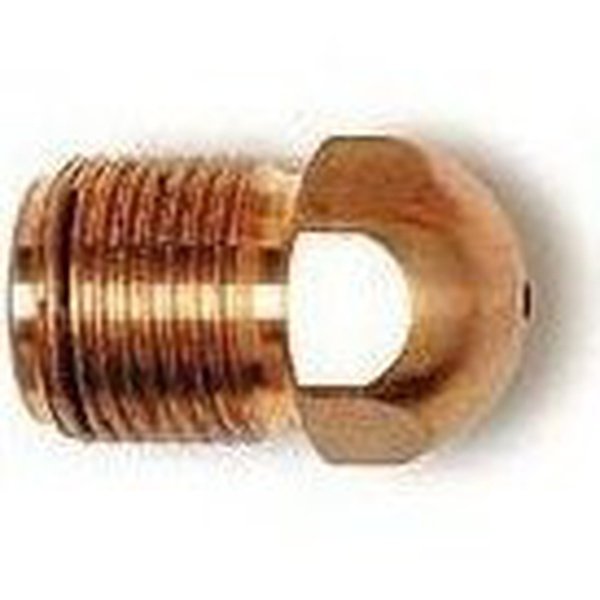

Copper Nickel Nozzle Tips

Provide very high levels of heat transfer and are ideal for use in appli­cations that require heat right at the tip, partic­ularly where the appli­cation prevents the use of a heater band at the tip.

  • Standard 7/8"-14 thread to suit our regular removable tip nozzles

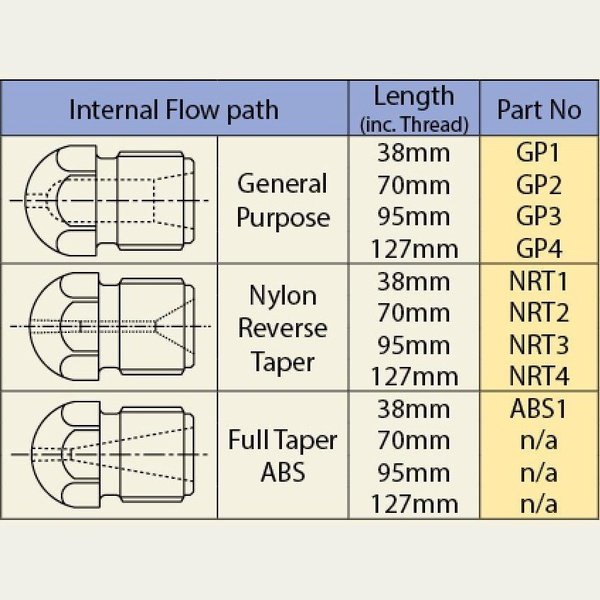

  • Reverse taper internal design for use with Nylon material
  • Available with your choice of length, radius and orifice
  • Extended tips have 25mm body O.D.
length radius orifice Comments Part no Price £ Quantity
38 Flat 3 BNRT10K 48.40
38 Flat 4 BNRT10L 48.40
38 12.5 3 BNRT15K 48.40
38 12.5 5 BNRT15M 48.40
38 15 3 BNRT16K 48.40
38 15 4 BNRT16L 48.40
38 19 3 BNRT17K 48.40
38 19 4 BNRT17L 48.40
38 19 5 BNRT17M 48.40
38 35 3 BNRT18K 48.40
70 Flat 3 BNRT20K 52.55
70 Flat 5 BNRT20M 52.55
70 12.5 3 BNRT25K 52.55
70 12.5 4 BNRT25L 52.55
70 12.5 5 BNRT25M 52.55
70 15 3 BNRT26K 52.55
70 19 3 BNRT27K 52.55
70 35 3 BNRT28K 52.55
95 Flat 3 BNRT30K 55.20
95 12.5 3 BNRT35K 55.20
95 12.5 4 BNRT35L 55.20
95 15 3 BNRT36K 55.20
length
radius
orifice
38
Flat
3
BNRT10K
£48.40
38
Flat
4
BNRT10L
£48.40
38
12.5
3
BNRT15K
£48.40
38
12.5
5
BNRT15M
£48.40
38
15
3
BNRT16K
£48.40
38
15
4
BNRT16L
£48.40
38
19
3
BNRT17K
£48.40
38
19
4
BNRT17L
£48.40
38
19
5
BNRT17M
£48.40
38
35
3
BNRT18K
£48.40
70
Flat
3
BNRT20K
£52.55
70
Flat
5
BNRT20M
£52.55
70
12.5
3
BNRT25K
£52.55
70
12.5
4
BNRT25L
£52.55
70
12.5
5
BNRT25M
£52.55
70
15
3
BNRT26K
£52.55
70
19
3
BNRT27K
£52.55
70
35
3
BNRT28K
£52.55
95
Flat
3
BNRT30K
£55.20
95
12.5
3
BNRT35K
£55.20
95
12.5
4
BNRT35L
£55.20
95
15
3
BNRT36K
£55.20
38 Flat 3 BNRT10K 48.40
38 Flat 4 BNRT10L 48.40
38 12.5 3 BNRT15K 48.40
38 12.5 5 BNRT15M 48.40
38 15 3 BNRT16K 48.40
38 15 4 BNRT16L 48.40
38 19 3 BNRT17K 48.40
38 19 4 BNRT17L 48.40
38 19 5 BNRT17M 48.40
38 35 3 BNRT18K 48.40
70 Flat 3 BNRT20K 52.55
70 Flat 5 BNRT20M 52.55
70 12.5 3 BNRT25K 52.55
70 12.5 4 BNRT25L 52.55
70 12.5 5 BNRT25M 52.55
70 15 3 BNRT26K 52.55
70 19 3 BNRT27K 52.55
70 35 3 BNRT28K 52.55
95 Flat 3 BNRT30K 55.20
95 12.5 3 BNRT35K 55.20
95 12.5 4 BNRT35L 55.20
95 15 3 BNRT36K 55.20
Additional Details
length radius orifice
38 Flat 3
38 Flat 4
38 12.5 3
38 12.5 5
38 15 3
38 15 4
38 19 3
38 19 4
38 19 5
38 35 3
70 Flat 3
70 Flat 5
70 12.5 3
70 12.5 4
70 12.5 5
70 15 3
70 19 3
70 35 3
95 Flat 3
95 12.5 3
95 12.5 4
95 15 3
