Coil Heater - Square Coil Heater

Square Section Coil Heater 3.3 x 3.3mm Section

£72.08 - £146.04
£79.84
£72.08 - £146.04
£79.84
Description

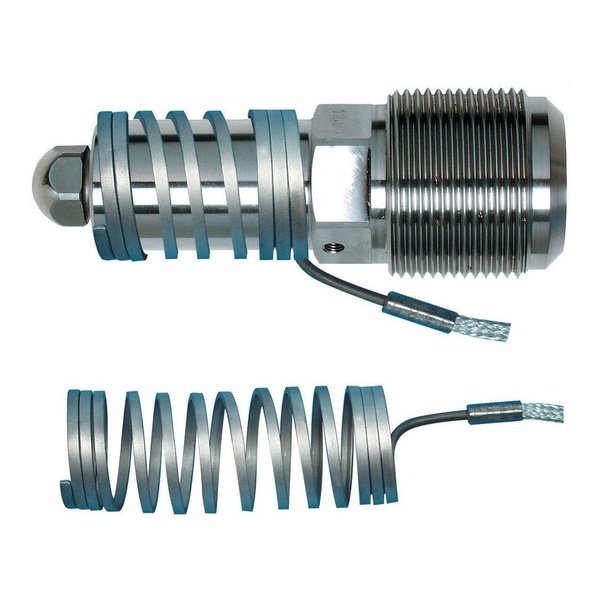

Square section Coil Heaters: 3.35 X 3.35 mm square.

  • Operates up to 700C (1300F). Ideal for hot runners.
  • Square profile for better contact & performance, minimal space requirement.
  • Fully sealed for Extra long life. Heaters 230/240 Volts.

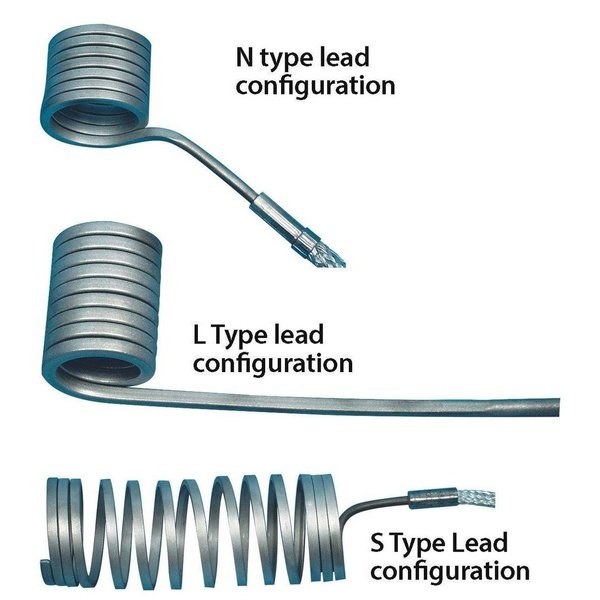

  • Includes type J thermocouple and 1m Glass impregnated fibre sheath leads .

Prices include simple coiling to specified I.D.

length thermocouple Comments Part no Price £ Quantity
300 long 225W Yes 3.35 X 3.35mm section 300 long 225W 8R-300225 79.84
400 long 300W Yes 3.35 X 3.35mm section 400 long 300W 8R-400300 82.08
400 long 250W No 3.35 X 3.35mm, 400 long 250W no T/C 8R-400250NTC 72.08
450 long 350W Yes 3.35 X 3.35mm section 450 long 350W 8R-450350 75.86
500 long 400W Yes 3.35 X 3.35mm section 500 long 400W 8R-500400 85.76
600 long 450W Yes 3.35 X 3.35mm section 600 long 450W 8R-600450 91.83
700 long 500W Yes 3.35 X 3.35mm section 700 long 500W 8R-700500 91.83
800 long 600W Yes 3.35 X 3.35mm section 800 long 600W 8R800600 95.66
900 long 700W Yes 3.35 X 3.35mm section 900 long 700W 8R-900700 98.69
1000 long 800W Yes 3.35 X 3.35mm section 1000 long 800W 8R-1000800 102.43
1200 long 900W Yes 3.35 X 3.35mm section 1200 long 900W 8R-1200900 110.04
1400 long 1000W Yes 3.35 X 3.35mm section 1400 long 1000W 8R-14001000 119.06
1600 long 1100W Yes 3.35 X 3.35mm section 1600 long 1100W 8R-16001100 127.36
1800 long 1250W Yes 3.35 X 3.35mm section 1800 long 1250W 8R-18001250 135.59
2000 long 1400W Yes 3.35 X 3.35mm section 2000 long 1400W 8R-20001400 146.04
length
thermocouple
300 long 225W
Yes
8R-300225
£79.84
400 long 300W
Yes
8R-400300
£82.08
400 long 250W
No
8R-400250NTC
£72.08
450 long 350W
Yes
8R-450350
£75.86
500 long 400W
Yes
8R-500400
£85.76
600 long 450W
Yes
8R-600450
£91.83
700 long 500W
Yes
8R-700500
£91.83
800 long 600W
Yes
8R800600
£95.66
900 long 700W
Yes
8R-900700
£98.69
1000 long 800W
Yes
8R-1000800
£102.43
1200 long 900W
Yes
8R-1200900
£110.04
1400 long 1000W
Yes
8R-14001000
£119.06
1600 long 1100W
Yes
8R-16001100
£127.36
1800 long 1250W
Yes
8R-18001250
£135.59
2000 long 1400W
Yes
8R-20001400
£146.04
300 long 225W Yes 8R-300225 79.84
400 long 300W Yes 8R-400300 82.08
400 long 250W No 8R-400250NTC 72.08
450 long 350W Yes 8R-450350 75.86
500 long 400W Yes 8R-500400 85.76
600 long 450W Yes 8R-600450 91.83
700 long 500W Yes 8R-700500 91.83
800 long 600W Yes 8R800600 95.66
900 long 700W Yes 8R-900700 98.69
1000 long 800W Yes 8R-1000800 102.43
1200 long 900W Yes 8R-1200900 110.04
1400 long 1000W Yes 8R-14001000 119.06
1600 long 1100W Yes 8R-16001100 127.36
1800 long 1250W Yes 8R-18001250 135.59
2000 long 1400W Yes 8R-20001400 146.04
Additional Details
length thermocouple
300 long 225W Yes
400 long 300W Yes
400 long 250W No
450 long 350W Yes
500 long 400W Yes
600 long 450W Yes
700 long 500W Yes
800 long 600W Yes
900 long 700W Yes
1000 long 800W Yes
1200 long 900W Yes
1400 long 1000W Yes
1600 long 1100W Yes
1800 long 1250W Yes
2000 long 1400W Yes
