Boy Removable Tip Nozzles
Original price
£123.63
-
Original price
£263.38
Original price
£123.63
£123.63
-
£263.38
Current price
£123.63
Description

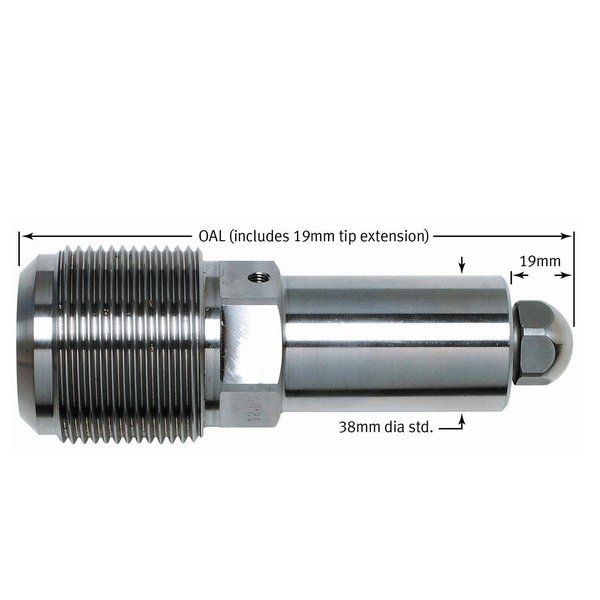

Boy Nozzle Body
Nozzle body with thread to suit your machine. 11/2" body diameter accepts standard heater bands and 7/8"-14 female thread at front to accept removable nozzle tips. Pre heat-treated steel machined to suit the thread of your machine and accept standard low-cost replacement tips.
Any size or specification made to your requirements. Simply find your machine thread below for part number:
To order special nozzles, or sizes not shown above, click here or please call sales office 01536 206653
| Thread | R/O | Part No | Machine Model |
|---|---|---|---|
| 24x1.5 | 1/2" | BBD | |
| 24x1.5 | 14mm | BD | 15 22 30 |
| 30x1.5 | 14mm | BBE | |
| 30x2 | 14mm | BBC | 25M |
| 33x1.5 | 22mm | AW | 22mm r/o 23mm T/L |
| 35x1.5 | 16mm | BY | 50-80 |
| 35x1.5 | 22mm | BW | 50 |
| 35x1.5 | 22mm | BBG | 22mm R/O |
Additional Details
| Part Number | Length (mm) |
|---|---|
| BBD | 95 |
| BD | 95 |
| BD | 125 |
| BD | 150 |
| BD | 175 |
| BD | 200 |
| BD | 225 |
| BD | 250 |
| BD | 300 |
| BBE | 95 |
| BBC | 95 |
| BBC | 125 |
| AW | 95 |
| AW | 125 |
| BY | 95 |
| BY | 125 |
| BY | 150 |
| BY | 175 |
| BY | 225 |
| BW | 125 |
| BBG | 125 |
