OEM Nozzle Tips - Arburg Type Nozzle Tips- Nylon Taper

Arburg type nozzle tips - Nylon Taper

£42.32 - £77.62
£42.32
£42.32 - £77.62
£42.32
Description

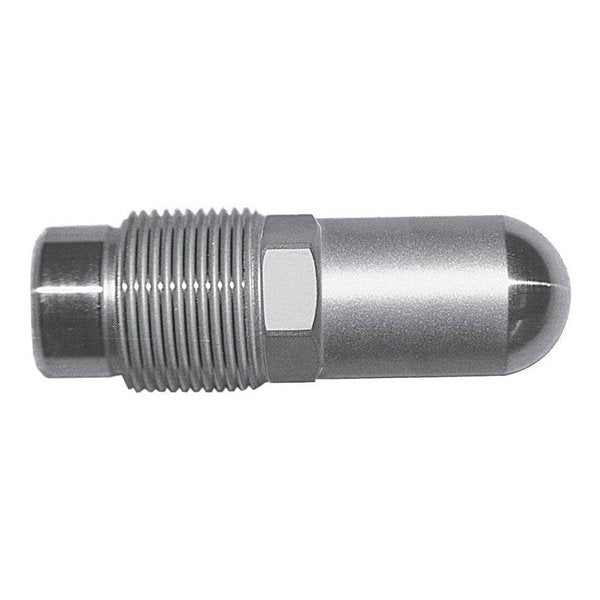

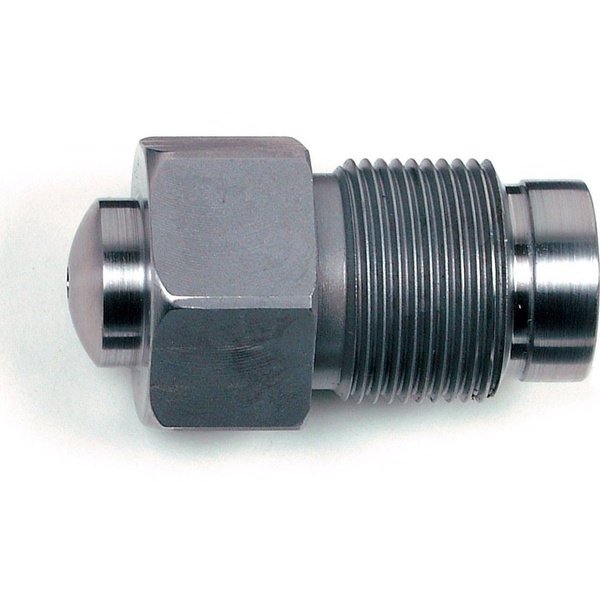

OEM style replacement tips for Arburg machines.

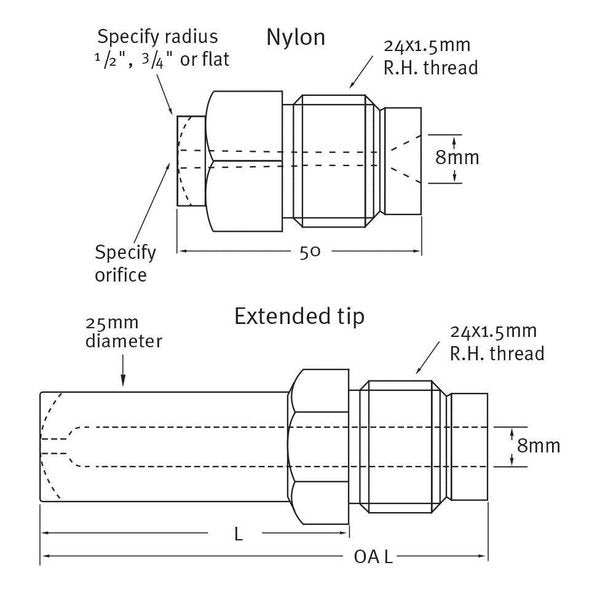

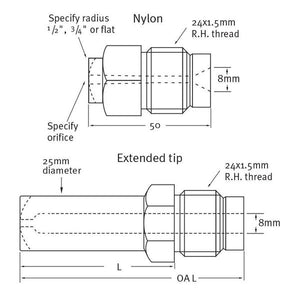

Rear thread is 24/1.5mm and 8mm rear opening.

Available with any radius and orifice and in 4 lengths. Made from through-hardened chrome/vanadium steel. Available in General Purpose or Nylon style.

Note: to complete part number, select length, Radius and Orifice below.

length radius orifice Comments Part no Price £ Quantity
50 flat 3 ASSN20K 42.32
50 flat 4 ASSN20L 42.32
50 flat 5 ASSN20M 42.32
50 flat 6 ASSN20N 42.32
50 12.5 3 ASSN25K 42.32
50 12.5 4 ASSN25L 42.32
50 12.5 5 ASSN25M 42.32
50 12.5 6 ASSN25N 42.32
50 15 3 ASSN26K 42.32
50 15 4 ASSN26L 42.32
50 15 5 ASSN26M 42.32
50 15 6 ASSN26N 42.32
50 19 3 ASSN27K 42.32
50 19 4 ASSN27L 42.32
50 19 5 ASSN27M 42.32
50 35 3 ASSN28K 42.32
50 120 cone 3 ASSN24K 42.32
75 flat 3 ASSN30K 56.86
75 flat 4 ASSN30L 56.86
75 flat 5 ASSN30M 56.86
75 flat 8 ASSN30O 56.86
75 12.5 3 ASSN35K 56.86
75 12.5 4 ASSN35L 56.86
75 12.5 5 ASSN35M 56.86
75 12.5 8 ASSN35O 56.86
75 15 3 ASSN36K 56.86
75 15 4 ASSN36L 56.86
75 15 6 ASSN36N 56.86
75 19 3 ASSN37K 56.86
75 35 3 ASSN38K 56.86
75 90 cone 3 ASSN33K 56.86
75 90 cone 4 ASSN33L 56.86
75 90 cone 6 ASSN33N 56.86
75 120 cone 3 ASSN34K 56.86
95 flat 3 ASSN40K 62.12
95 flat 4 ASSN40L 62.12
95 flat 5 ASSN40M 62.12
95 12.5 3 ASSN45K 62.12
95 12.5 4 ASSN45L 62.12
95 12.5 5 ASSN45M 62.12
95 15 3 ASSN46K 62.12
95 15 4 ASSN46L 62.12
95 15 2.5 ASSN46J 62.12
95 19 3 ASSN47K 62.12
95 19 4 ASSN47L 62.12
95 35 8 ASSN48O 62.12
95 90 cone 3 ASSN43K 62.12
95 90 cone 4 ASSN43L 62.12
95 90 cone 5 ASSN43M 62.12
95 90 cone 6 ASSN43N 62.12
120 flat 3 ASSN50K 77.62
120 12.5 3 ASSN55M 77.62
